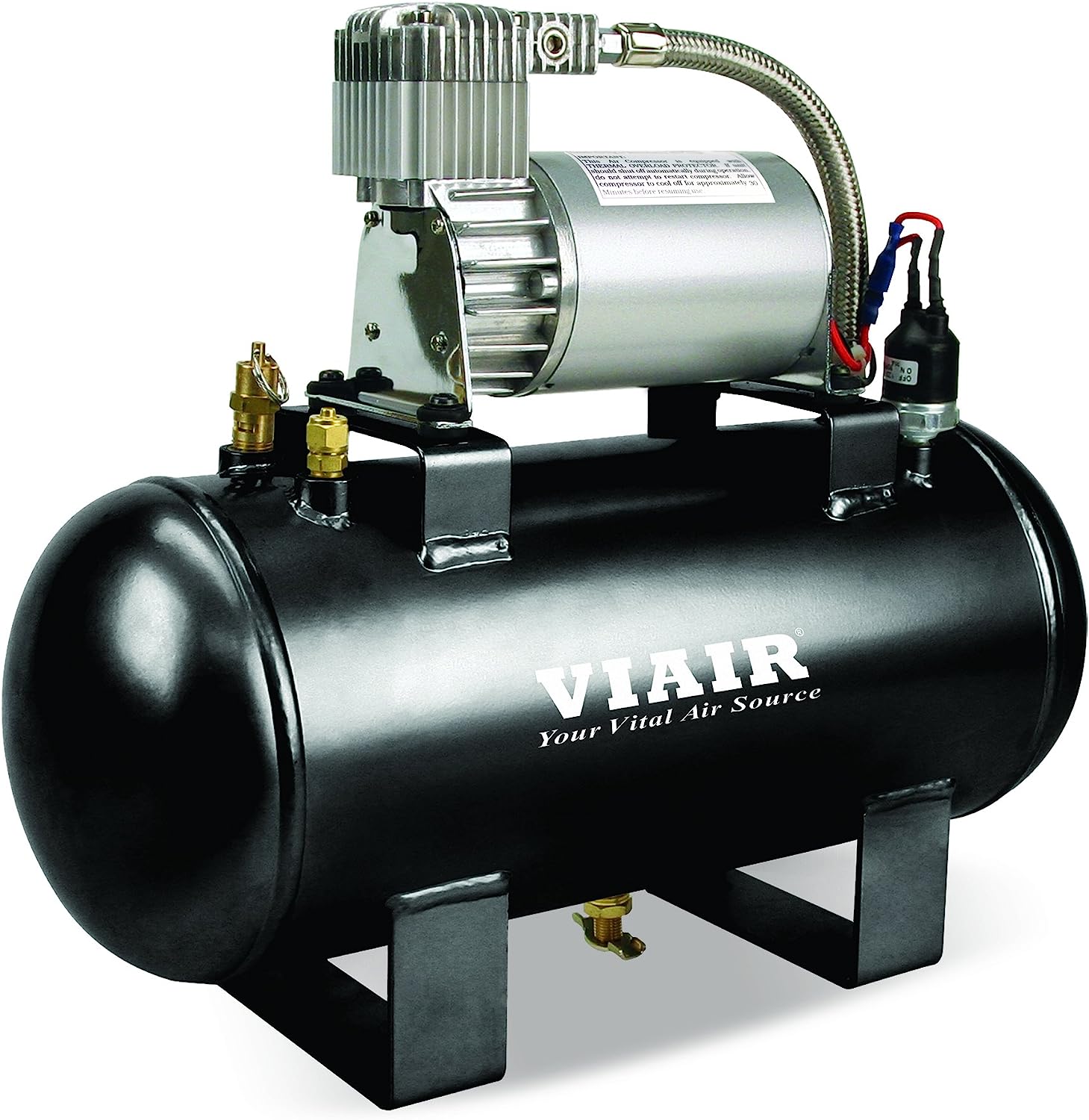

1.5 Gal. Tank Air Source Kit Fast Fill-120 (12V, 120 PSI Compressor)

• 275C compressor, a.5 Gallon Tank
• 12 Volt, Duty cycle: 25% @ 100 PSI
• Max. working pressure: 150 PSI
• Max. Amp draw: 18 Amps, Min. Ambient Temp: - 40 F
• Max. Ambient Temp: 158 F, Dimensions: 15"x6"x13"H 13.75 lbs

120 PSI Air Source Kits come with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20003 / 90-120 PSI). The 120 PSI Air Source Kit comes complete with a 1/4” NPT brass drain cock, 1/4” NPT ASME coded and certified safety valve, 1/2” NPT port compression fitting for 3/8” air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch. FEATURES – 275C Pewter Air Compressor – 1.5 Gallon Air Tank – Pressure Switch (90 PSI On / 120 PSI Off) – Safety Valve (145 PSI) – Drain Cock – Leader Hose with Check Valve SPECIFICATIONS – 12-Volt – Permanent Magnetic Motor – Duty Cycle: 25% @ 100 PSI – Max. Working Pressure: 120 PSI – Max. Amp Draw: 18 Amps – Ingress Protection Rating: IP54 – Dimensions: 15.2″L x 5.9″W x 12.8″H – Net Weight: 15.65 lbs. PERFORMANCE DATA PSI CFM A BAR LPM A 0 2.03 10 0 57.5 10 10 1.17 12 1.0 32.0 13 20 1.11 13 2.0 30.0 14 30 1.04 15 3.0 28.5 16 40 1.01 15 4.0 26.5 16 50 0.97 16 5.0 24.5 17 60 0.92 16 6.0 22.5 17 70 0.88 17 7.0 21.5 18 80 0.83 17 8.0 20.0 18 90 0.79 17 9.0 18.5 18 100 0.76 18 10 17.0 17 110 0.72 18 120 0.67 18 * Supply Voltage: 13.8 Volts  FILL RATES 1.5 GALLON TANK FILL RATE 0 to 120 PSI 2 min. 10 sec. (±10 Sec.) 90 to 120 PSI 35 sec. (± 5 Sec.)
