1XL-100

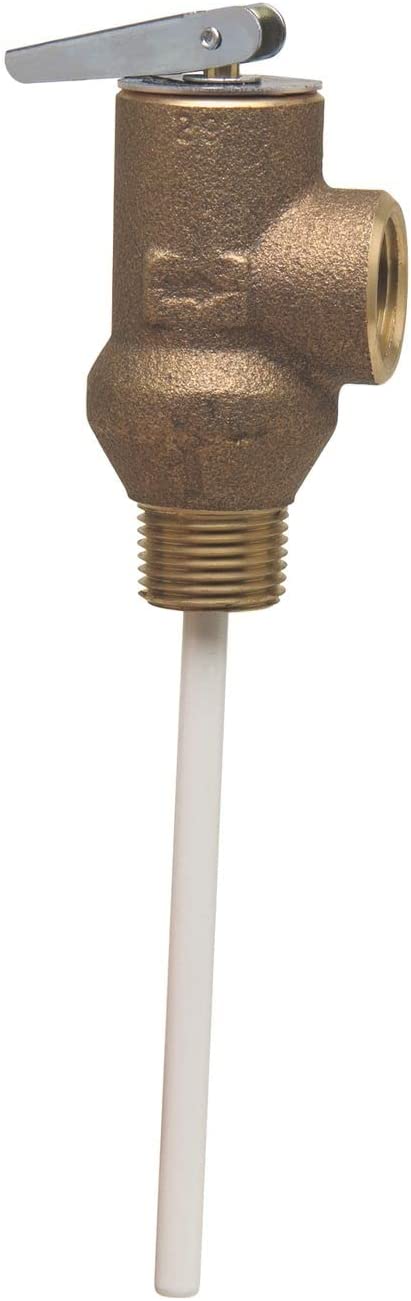

1/2 In Bronze Self Closing Temperature and Pressure Relief Valve, 100 psi, 210 degree F, 4 In Extension Thermostat_This 1/2 inch temperature and pressure relief valve, series 1XL, is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, extension thermostat with special thermo-bonded coating and test lever. Temperature relief is at 210 degree F (99 degreeC). Pressure relief range is 75 to 150 psi (5.2 to 10.3 bar).The pressure relief is set at 100 psi. (7.0 bar)._Unique thermostat with special thermo-bonded coating_Solid bronze body construction_Automatic reseating_ASME rated and CSA listed_Specifications_Body Material Bronze_Brand Watts_Buy American Act Compliant YES_EAN 098268000382_Inlet Connection Size 1/2 IN_Inlet Connection Type Male Threaded_Inlet Thread Type NPT_Lead Free NO_Outlet Connection Size 1/2 IN_Outlet Connection Type Female Threaded_Outlet Thread Type NPT_Part Number 0004431_Pressure Range 75 to 150 PSI_Pressure Relief Setting-PSI 100_Protection Type Temperature And Pressure_Series 1XL_Shank Length 7/8 IN_Temperature Relief-Fahrenheit 210_Temperature Steam Discharge Capacity 15,000 BTU per hour_Thermostat Probe Length 4 IN
