AEM 50-1005 Inline High Flow Fuel Pump (380lph), 6.24 x 2.365 x 2.365 inches

$266.07 CAD

$266.07 CAD ~~$272.06 CAD~~

Product description

The AEM 380lph High Flow Fuel Pump is designed for use with gasoline; Alcohol fuels can be used, but pump life will be diminished; The inlet thread is a -10 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

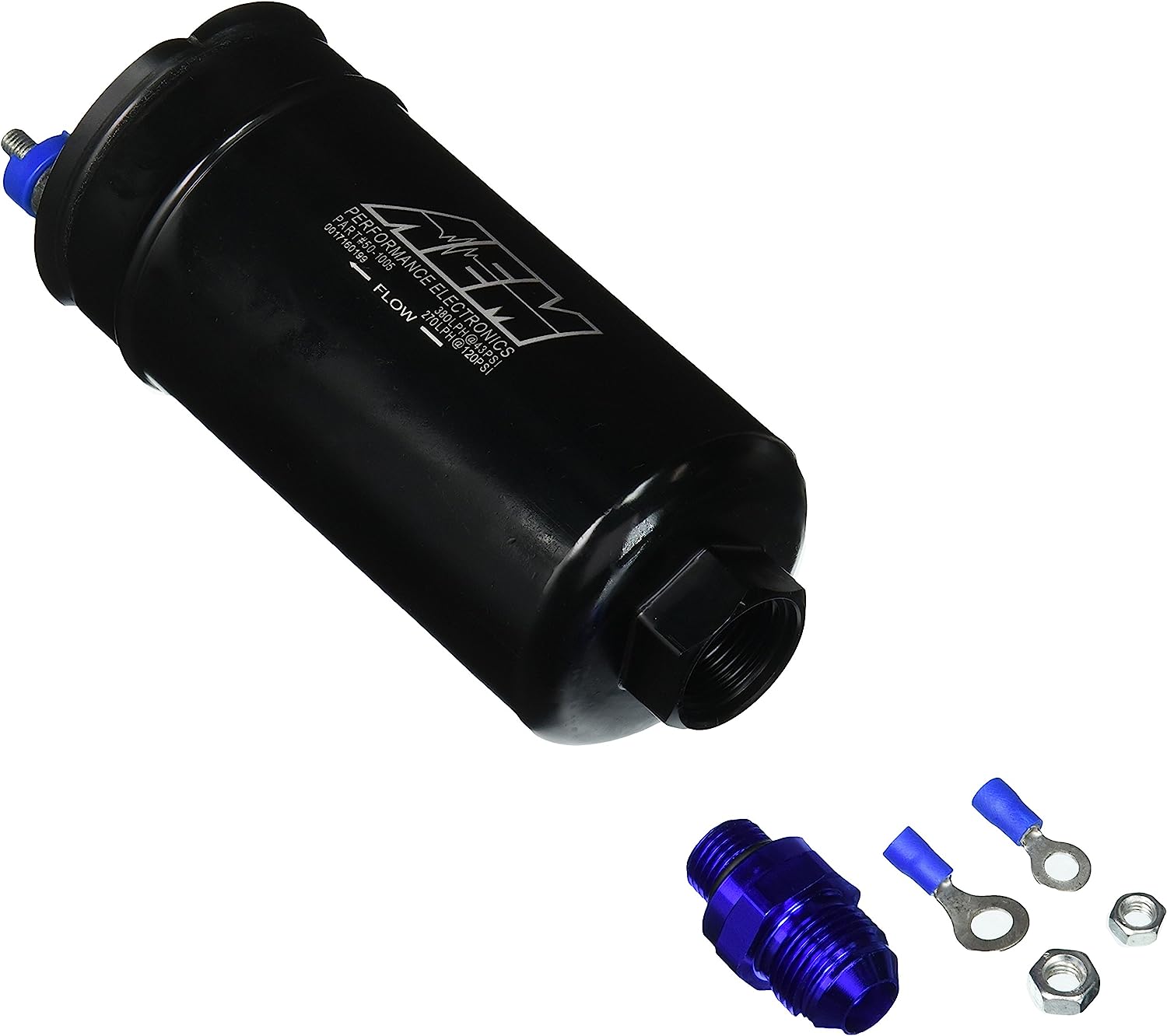

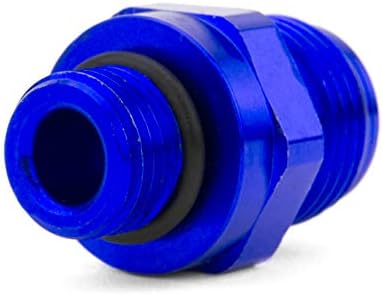

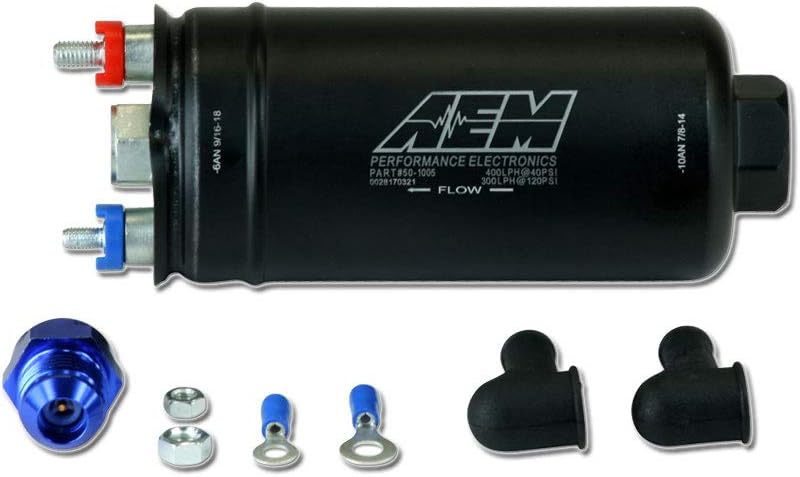

A male -6 to -8 AN discharge fitting with integral high pressure check valve, terminal nuts, terminal boots and installation instructions are included
Designed for high output naturally aspirated and forced induction EFI vehicles
Popular "044 Style" physical configuration but with AN inlet & discharge port connections
Each pump individually tested to flow minimum of 380lph (100gph) at 43 PSI
Maintains very high flow even at boosted fuel pressures; 340 lph @ 73 PSI (30 psi boost)

AEM's 380lph High Flow, High Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost! It flows 380 lph (100 gph) at 43 PSI, 340 lph (90 gph) at 73 PSI, and 270 lph (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs fuel pressure charts are available in the specs tab.
