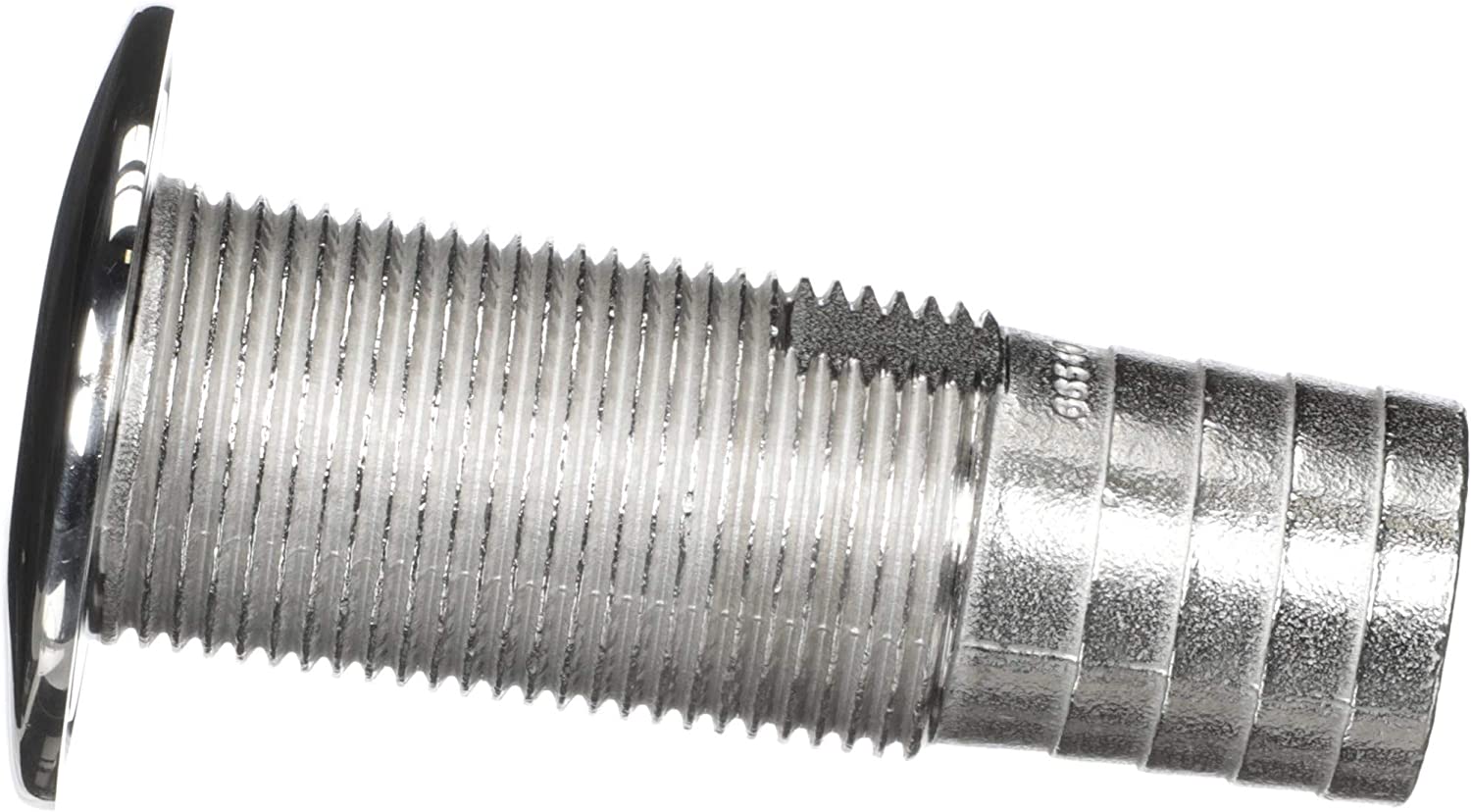

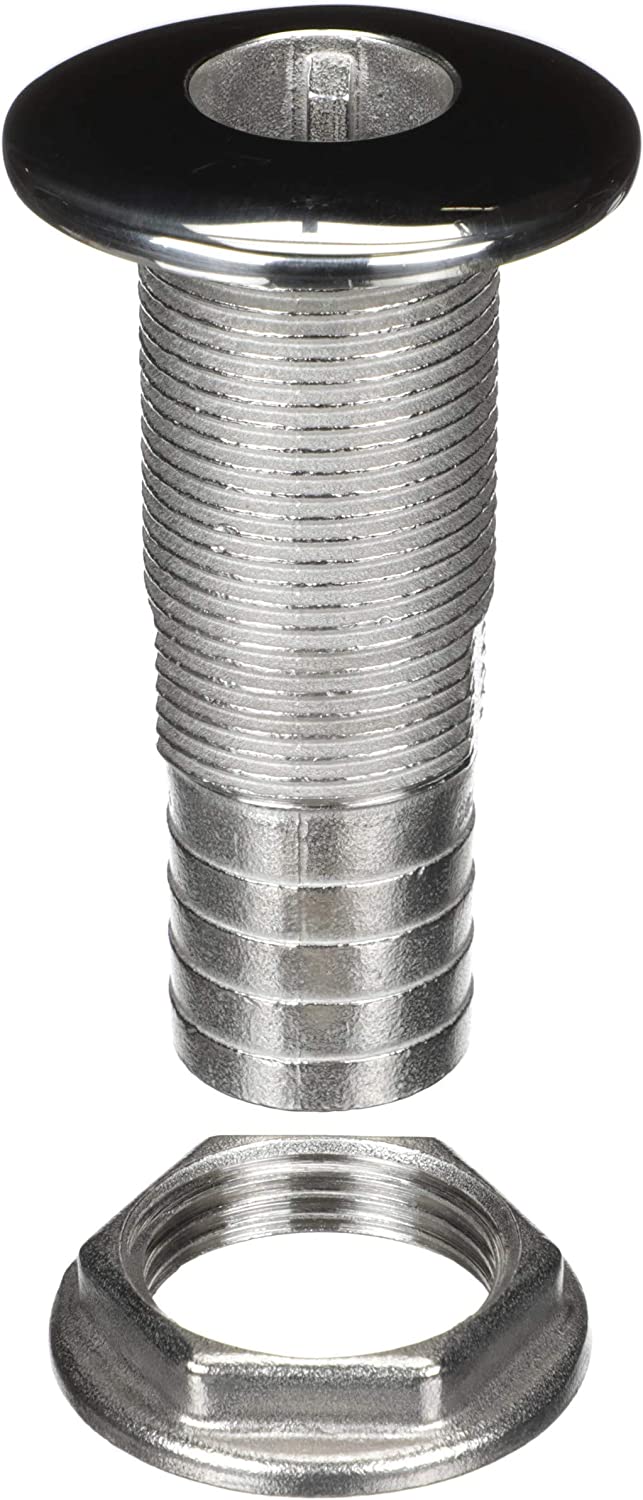

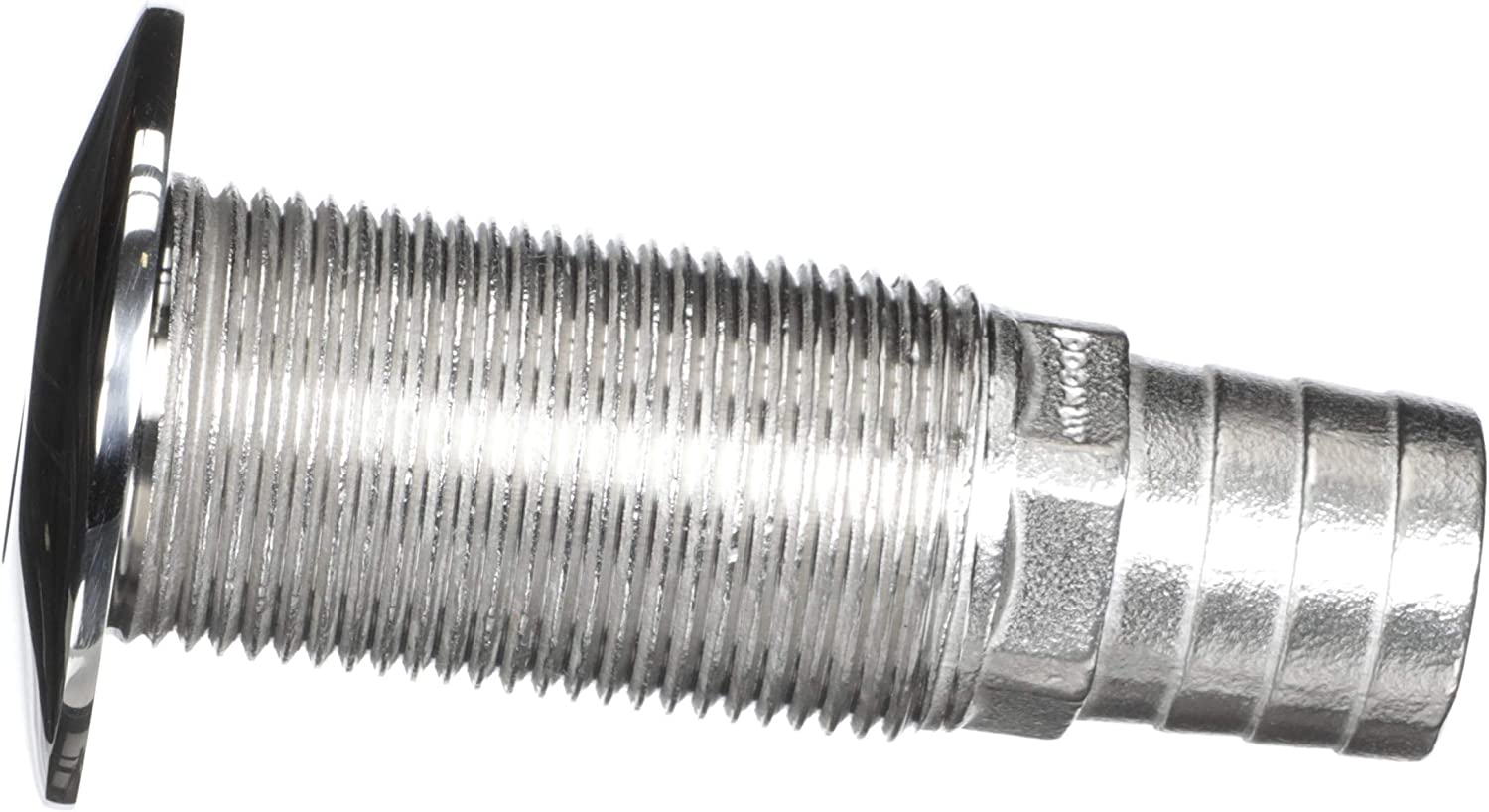

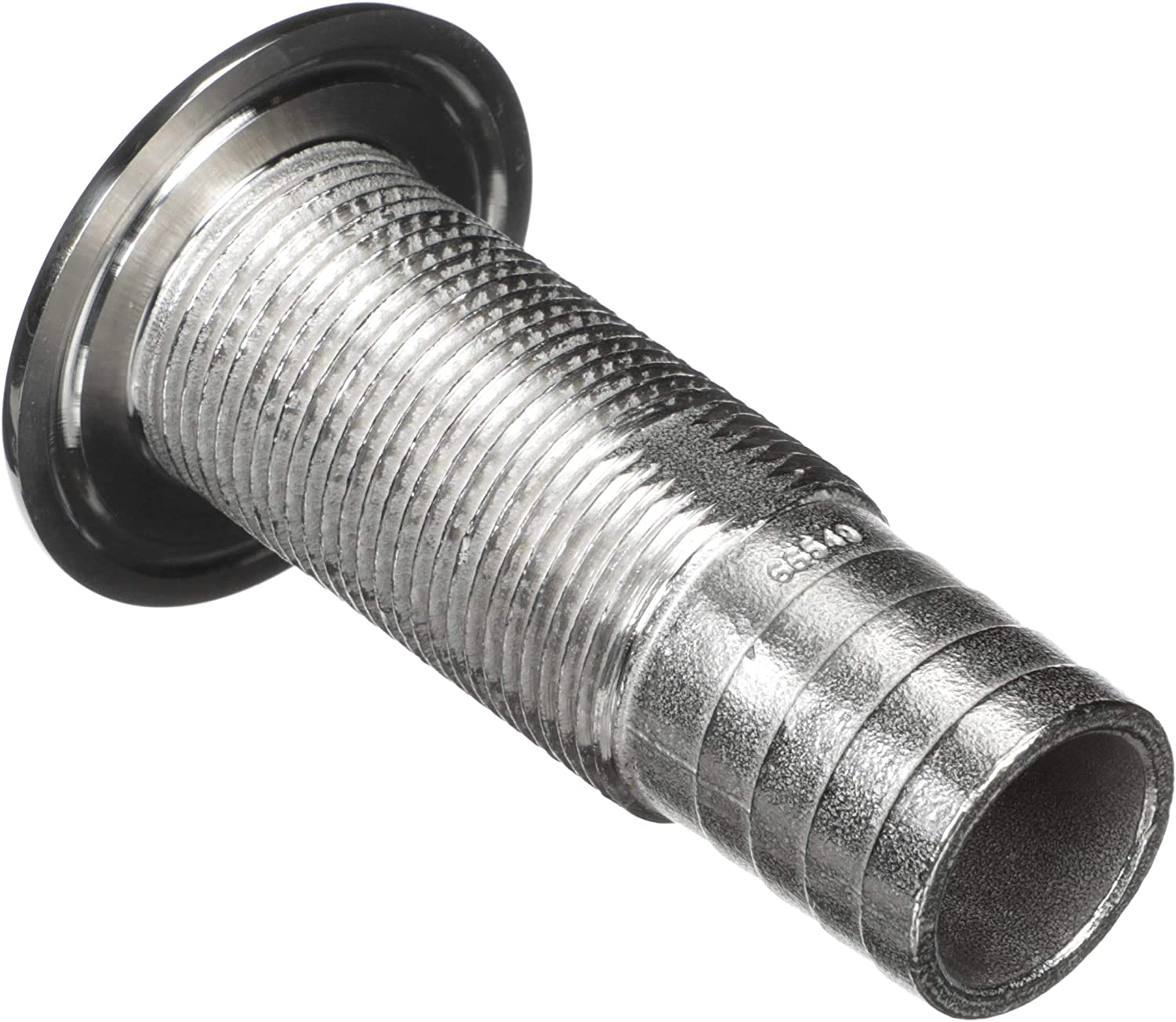

Attwood Stainless Steel Barbed Standard Length Straight Thru-Hull One Size

• Standard Thread has full length thread for thick hulls and easy tightening
• Hose Size: 3/4" I.D.
• Flange Dia.: 1-7/8"
• Thread O.D.: 1", Thread Length: 2", Barb Length: 1-1/4", Total Length: 3 3/4"
• Install. Hold size: 1 1/8", Thread NPSM: 3/4", Max Hull Thickness: 1-5/8"

This Attwood Stainless Steel Straight Thru-Hull Valve Fitting installs securely and provides long-term corrosion-free performance. This is a barbed, standard-length fitting for use with 3/4-inch interior diameter hose. This fitting has a 1 7/8-inch flange diameter, a 1-inch thread outside diameter, and 2-inch thread length. The barb is 1 ¼-inches long, and the fitting’s total length is 3 3/4-inches. The installation hole saw size is 1 1/8-inches, there is a 3/4-inch NPSM thread, and the maximum hull thickness is 1 5/8-inch. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years. We deliver safe and reliable lighting, fuel systems, water systems, seating & pedestals, swim ladders, custom upholstery, and general marine accessories that are easy to install and meet regulatory compliance.
