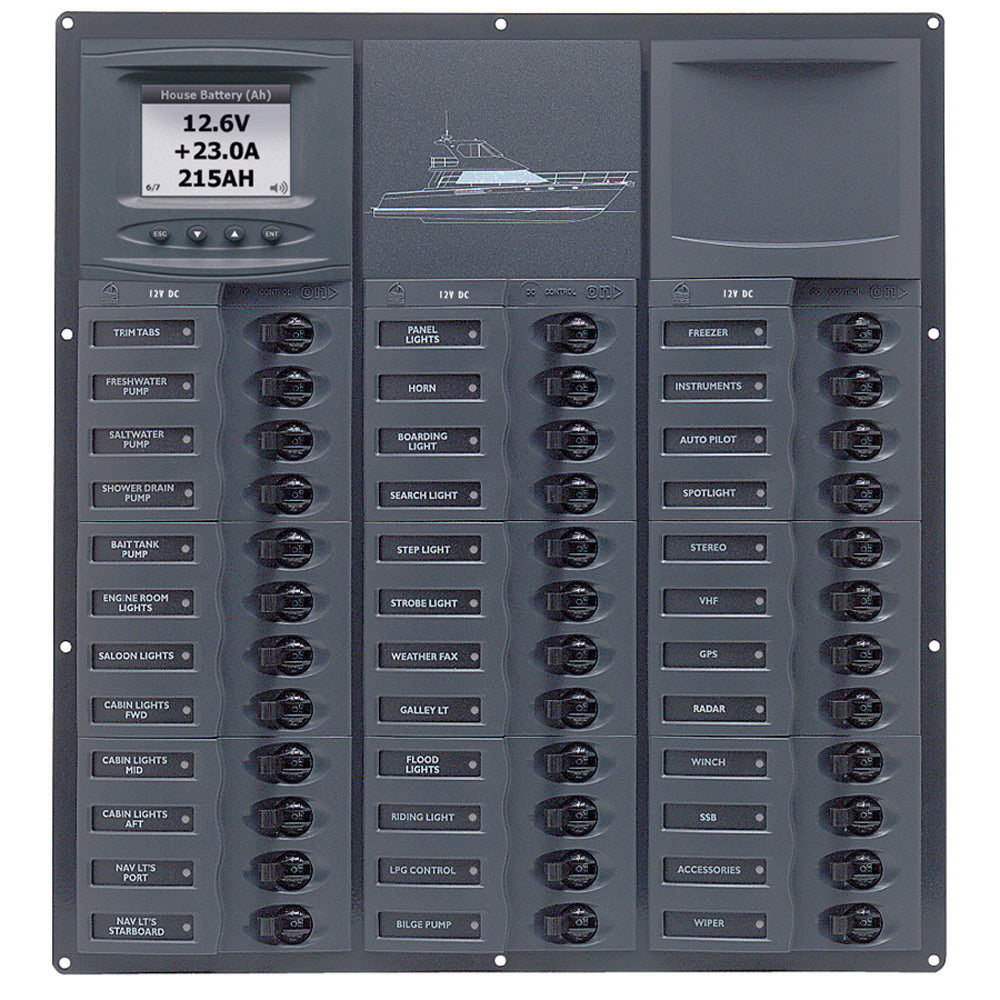

BEP Cruiser Series DC Circuit Breaker Panel w/Digital Meters 36SP DC12V

Cruiser Series DC Circuit Breaker Panel with Digital Meters 36SP DC12V
DC circuit breaker panel with digital monitoring

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Mimic Panel for quick reference of systems in operation

• Blank space for addition of extra meter

• Panels meet ABYC standards

Specifications

Total Positions: 36 Loads
Circuit Breakers: 8X 5A, 12X 10A, 12X 15A, 2X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 15" X 13.9" X 2.5"
Neg Bus: 24 Way
