Billet Specialties 10620 Independent Side Mount Alternator Bracket

• Brand New Polished Independent Alternator Bracket for BBC Short Water Pumps > This Bracket is produced by Billet Specialties (Part # 10620)

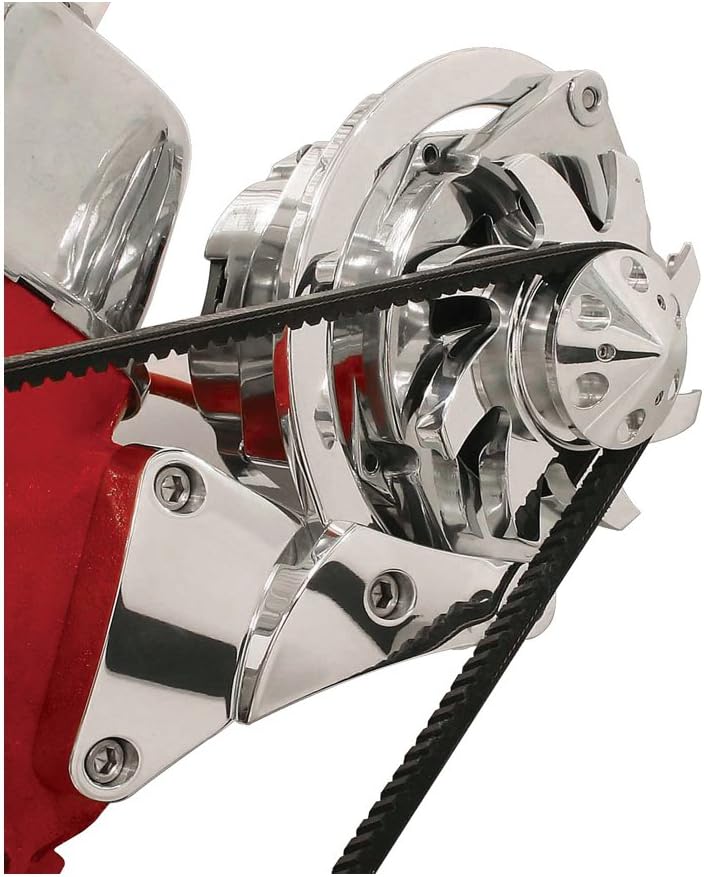

• This dual-point mounting, one-piece bracket mounts the alternator on the driver's side of the engine and positions it outside of the driver's side valve cover > You can see where it mounts the alternator in the picture and diagram shown
• This bracket is for use with: > Big Block Chevy standard heads with 3/8" bolt holes > BBC Short water pumps > GM 10SI or 12SI alternators > These alternators were popular on numerous GM vehicles from 1962 - 1994 > They have a 2 bolt mounting pattern (one at 12 o'clock and one at 6 o'clock) that measure 168mm (or 6.61") center-to-center; see the diagram shown
• Even if you don't purchase that alternator, the description lists all of the many GM vehicles that this model was used on > V-groove pulleys > Billet Specialties independent alternator brackets are CNC machined from 6061-T6 billet aluminum and polished to a mirror finish
• They are independently adjustable without stabilizer bars for a clean look > Multi-point fastening ensures stability and belt tension

Brand New Polished Independent Alternator Bracket for BBC Short Water Pumps. This Bracket is produced by Billet Specialties (Part # 10620). This dual-point mounting, one-piece bracket mounts the alternator on the driver's side of the engine and positions it outside of the driver's side valve cover. You can see where it mounts the alternator in the picture and diagram shown. This bracket is for use with: Big Block Chevy standard heads with 3/8" bolt holes BBC Short water pumps GM 10SI or 12SI alternators These alternators were popular on numerous GM vehicles from 1962 - 1994 They have a 2 bolt mounting pattern (one at 12 o'clock and one at 6 o'clock) that measure 168mm (or 6.61") center-to-center; see the diagram shown. Even if you don't purchase that alternator, the description lists all of the many GM vehicles that this model was used on. V-groove pulleys Billet Specialties independent alternator brackets are CNC machined from 6061-T6 billet aluminum and polished to a mirror finish. They are independently adjustable without stabilizer bars for a clean look. Multi-point fastening ensures stability and belt tension.
