Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

$51.67 CAD

$51.67 CAD ~~$52.83 CAD~~

Product description

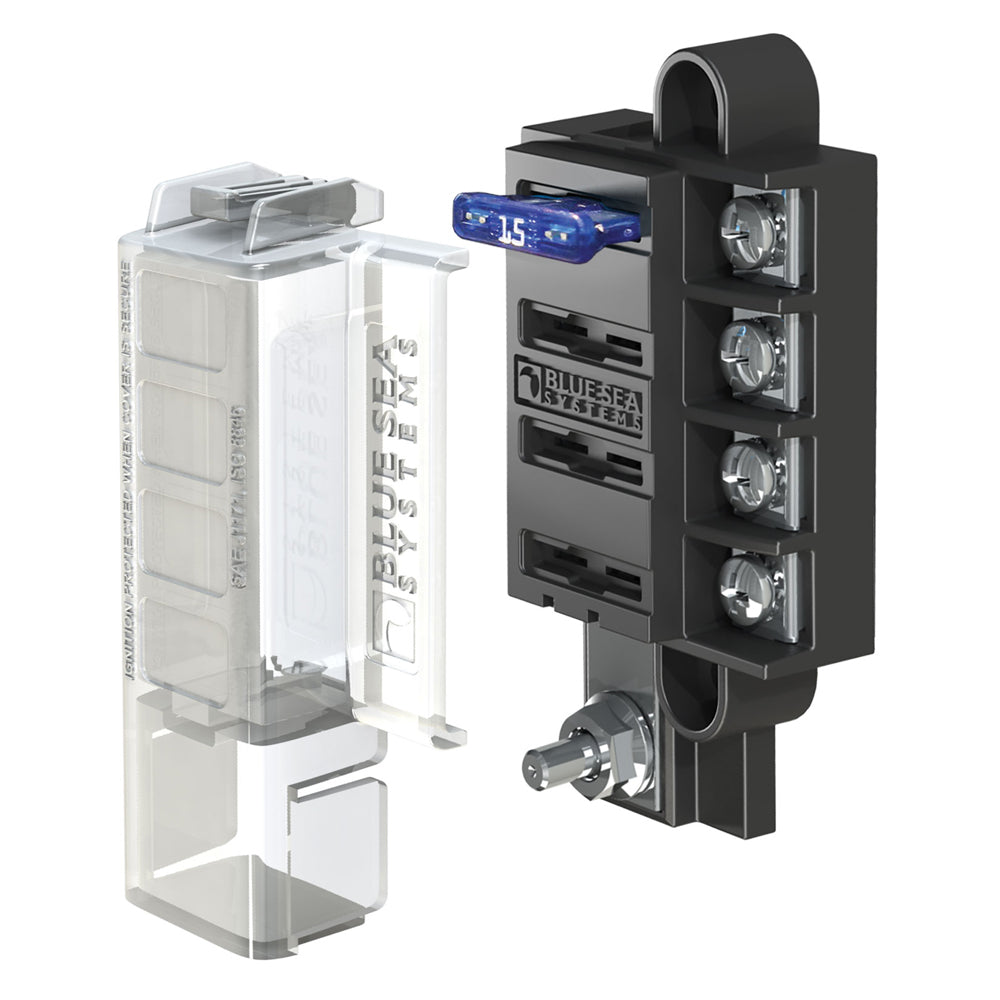

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

Compact common source fuse block
Accepts ATO® and ATC® fast acting blade fuses
Single side entry wiring
Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Small format standard and custom labels available

Specifications

Circuits:4
Maximum Amperage: 100A per block / 30A per circuit
Maximum Voltage:32V DC
Mounting: #8 Screw (M4)
Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
