Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Name: Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
Brand: Blue Sea Systems
SKU: U-632085050542
Price: 142.38 CAD
Availability: InStock

$142.38 CAD

$142.38 CAD ~~$142.38 CAD~~

Save 0

Availability:
Low Stock - ORDER NOW
SKU:
U-632085050542

Quantity

Ask a question Share

Estimated Delivery :Jan 02 - Jan 06
Transit Time : Transit Time for this product is around 2 - 4 days.

SHIPS FROM CANADA
NO DUTIES OR CUSTOMS

FREE SHIPPING
CANADAWIDE

IT'S ALWAYS HOLIDAY SEASON
UP TO 90 DAYS RETURN FOR IBS CLUB CUSTOMERS

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

$142.38 CAD

$142.38 CAD ~~$142.38 CAD~~

Product description

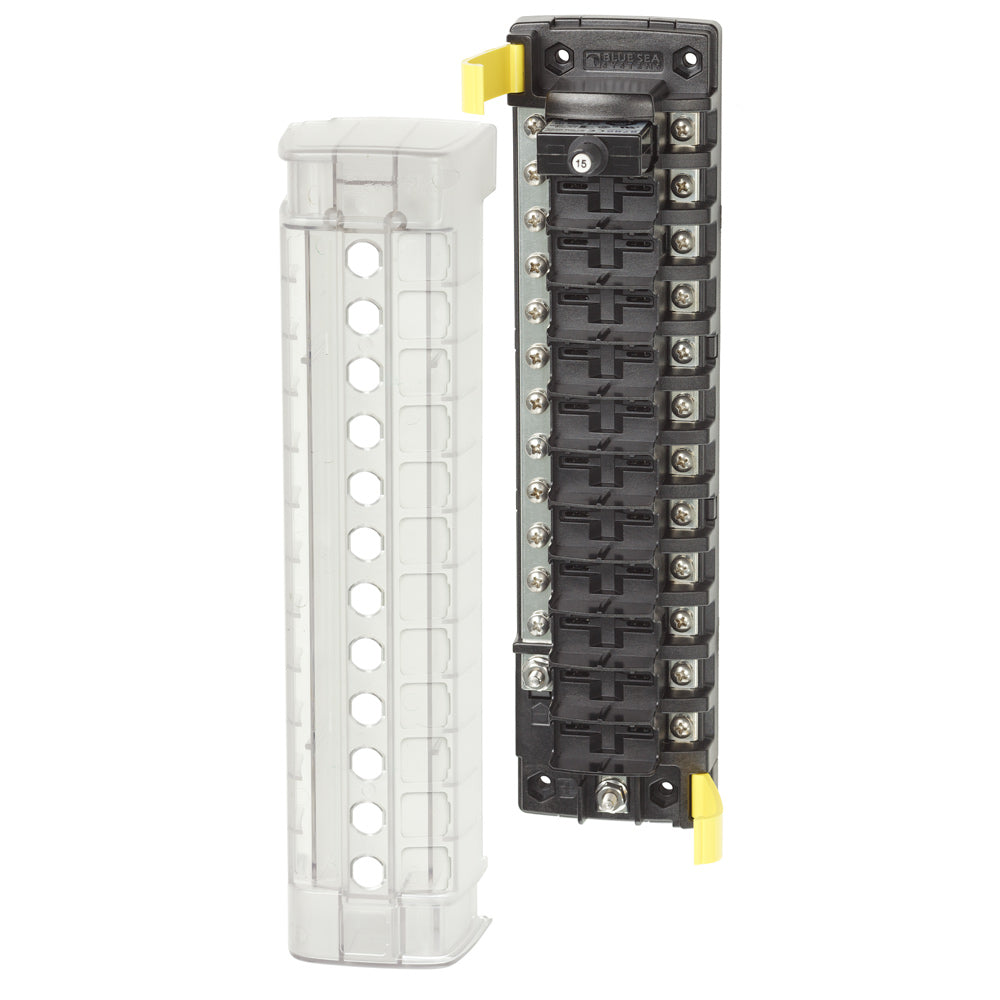

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
