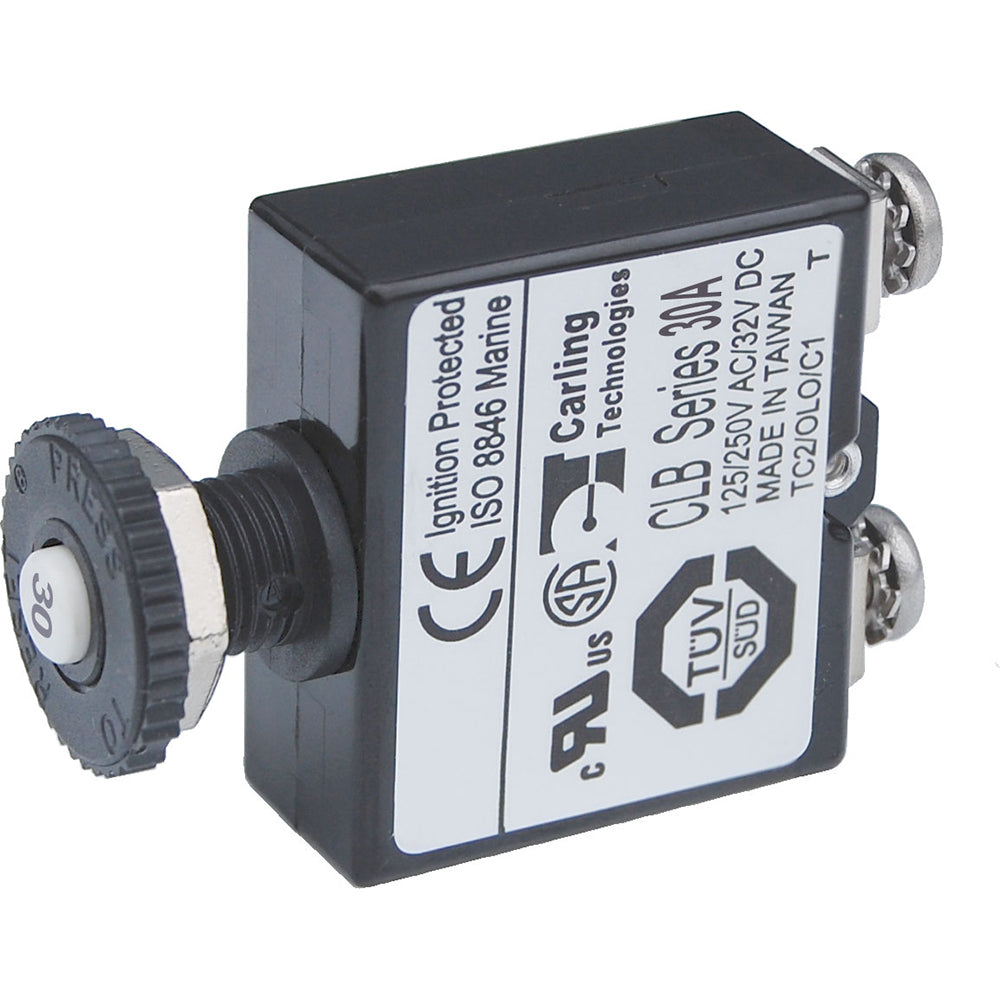

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps
Regular price
$24.76 CAD
Sale price
$24.76 CAD
Regular price
$33.93 CAD
Save 27%
-
Estimated Delivery :Apr 24 - Apr 28
-
Transit Time : Transit Time for this product is around 2 - 4 days.
Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps
Regular price
$24.76 CAD
Sale price
$24.76 CAD
Regular price
$33.93 CAD
Product description
Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps
Features:
Specifications:
Features:
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications:
- Amperage: 30A
- Maximum Voltage: 32V DC
- Mounting: Panel Mount 3/8-27 UNS
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Type: #8 Screw
- Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 60° C
- Screw Terminal Torque: 6 in-lb (0.68 Nm)
- Weight: 0.09lb (0.04 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
