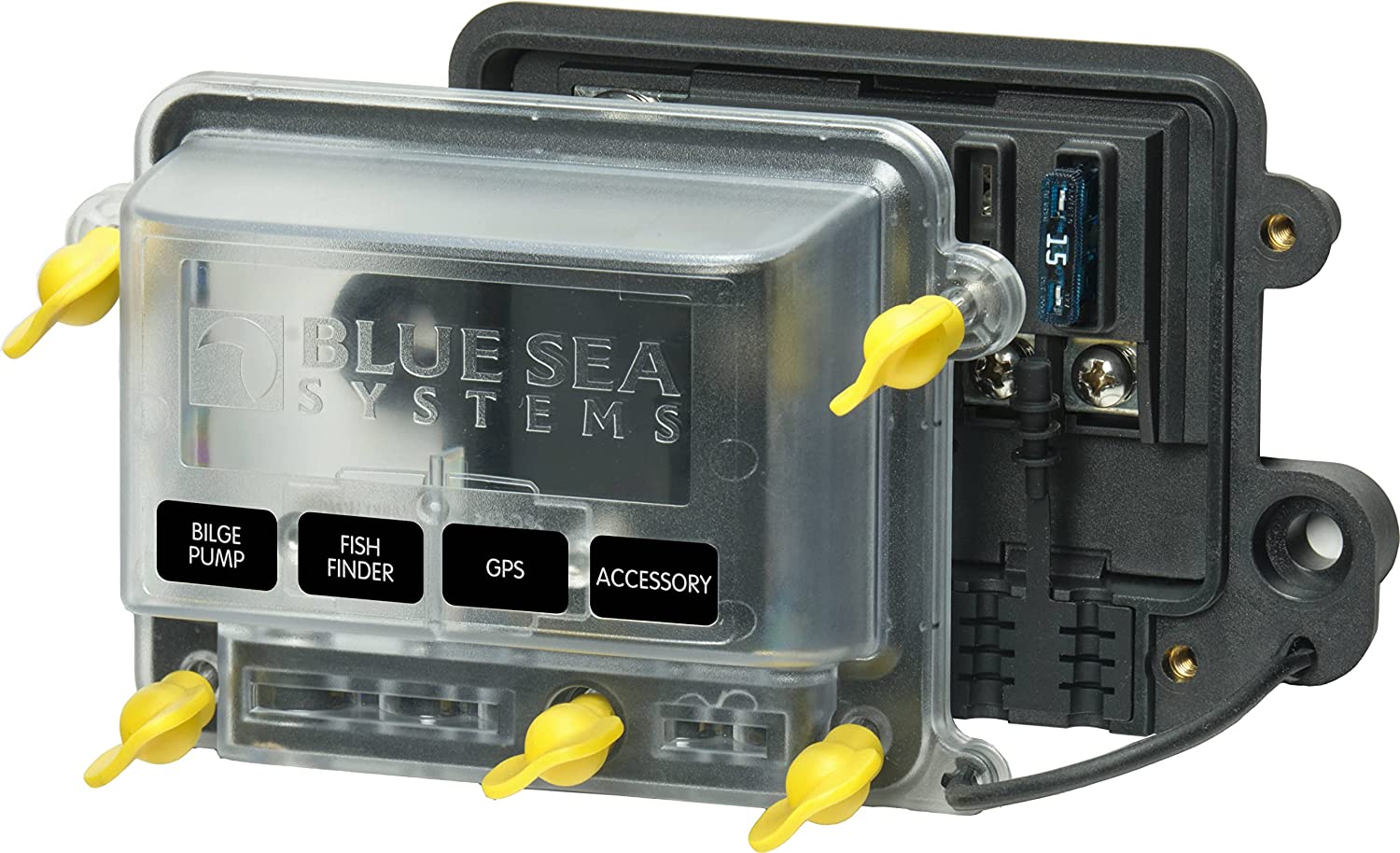

Blue Sea Systems 5056100 ST Blade Water-Resistant Fuse Block, Manual Cover

Name: Blue Sea Systems 5056100 ST Blade Water-Resistant Fuse Block, Manual Cover
Brand: BLUE SEA
SKU: U-632085505615
Price: 67.4 CAD
Availability: InStock

$67.40 CAD

$67.40 CAD ~~$68.92 CAD~~

Save 2%

Availability:
In Stock
SKU:
U-632085505615

MPN: 5056100

Manufacturer: BLUE SEA

Quantity

Ask a question Share

Estimated Delivery :Jun 09 - Jun 13
Transit Time : Transit Time for this product is around 2 - 4 days.

SHIPS FROM CANADA
NO DUTIES OR CUSTOMS

FREE SHIPPING
CANADAWIDE

IT'S ALWAYS HOLIDAY SEASON
UP TO 90 DAYS RETURN FOR IBS CLUB CUSTOMERS

Blue Sea Systems 5056100 ST Blade Water-Resistant Fuse Block, Manual Cover

$67.40 CAD

$67.40 CAD ~~$68.92 CAD~~

Product description

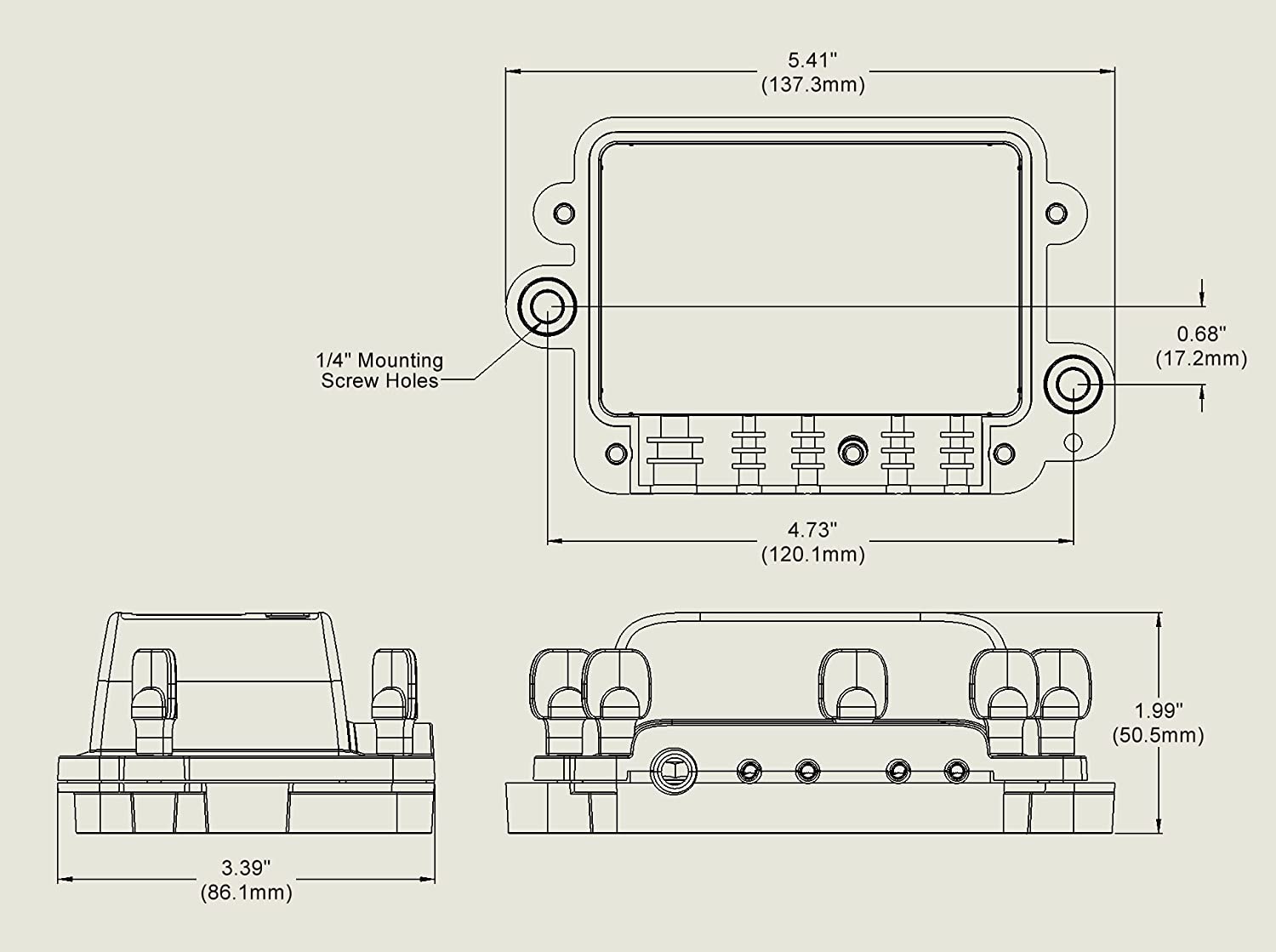

Voltage Max. Operating: 32V DC, Amperage Max. Operating: 80A per block / 25A per circuit, Fuse Type ATO or ATC fuses & circuit breakers, Input Wire Size: (1) 8 AWG to 4 AWG, Load Wire Size: (4) 16 AWG to 10 AWG, Bus Material: Tin-Plated Copper C11000, Mounting Thru-hole: Accepts 1/4" (6mm) screws, Screw terminal: 4x 8-32 Screws with captive star lock washer, Stud terminal: 1 x 10-32
Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
Accepts a wide range of wire sizes, ATO and ATC fast-acting blade fuses, and ATO/ATC-Style Low Profile Circuit Breakers
Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required and 4 write-on circuit labels
Wing-screws designed for tool-free installation of cover to meet ABYC compliance
Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
Fuses and circuit breakers sold separately. Storeage for spare fuse and fastener in cover

Provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.
