JKS JKS1210 Drag Link Flip Kit

• Package Dimensions: 8.5" (L) x 40.5" (W) x 8.5" (H)
• Product Type: Auto Part
• Package Quantity: 1
• Country Of Origin: United States

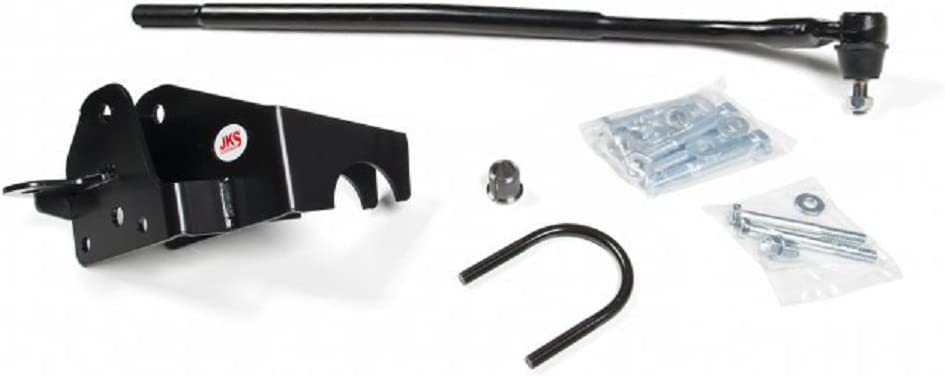

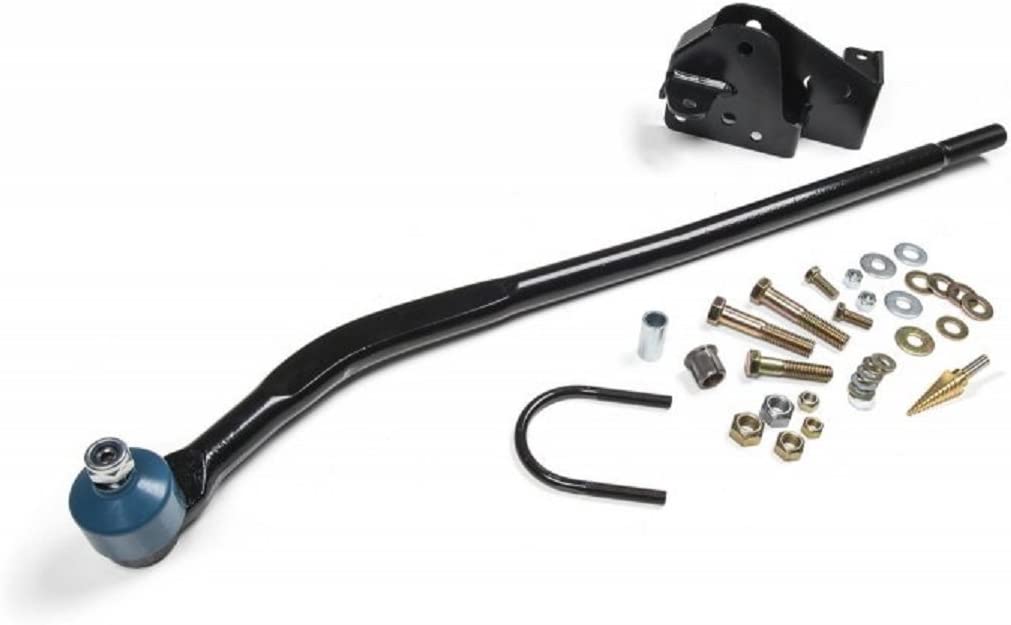

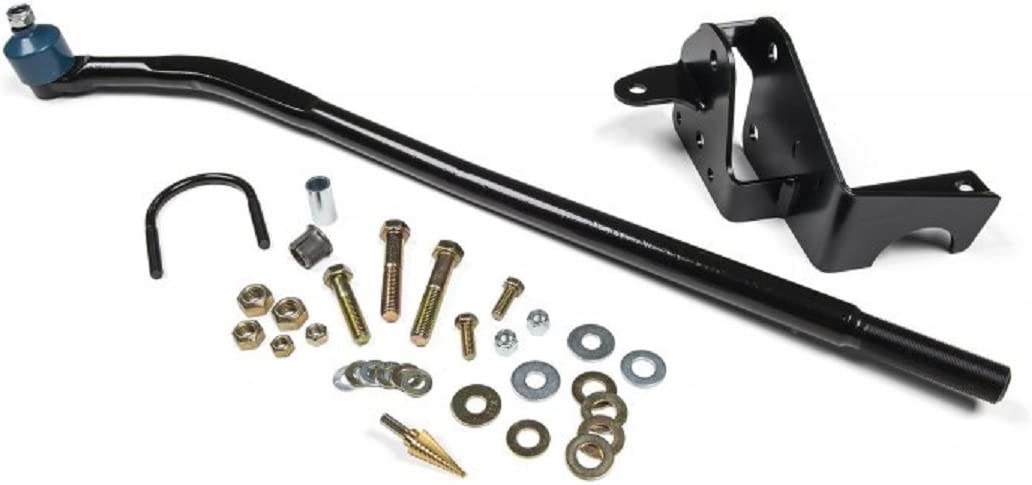

The drag link flip kit is comprised of 2 critical components. First, the new drag link directly replaces the factory link and uses the factory adjusting collar and tie rod end at the pitman arm. This installation requires drilling out the steering arm tapered hole in the passenger’s side knuckle and installing a precision machined tapered insert. We even included a 7/8” step bit to make this process easy and not require the purchase of an expensive drill bit to complete the install. The new insert has a knurled outer surface and has a slight interference fit making it extremely strong and eliminates any possibility of play or loosening. The insert can also be reused in the opposite position if the Jeep ever needed to be returned to the original steering setup. The drag link flip flattens out the steering angles when combined with the lift heights of 2” and above providing better performing, more solid steering feel over the factory setup. To properly compliment the new steering angles provided by the drag link flip, a front track bar bracket is supplied. The new bracket mounts to the factory track bar axle mount. It not only adapts the factory mount for proper track bar angles, it also strengthens the factory setup by tying into the axle via a u-bolt setup integrated into the design. The new track bar location mimics the drag link angle perfectly and eliminates bump steer. In order to accommodate these 2 new components, 3” tall front aluminum bump stop extensions necessary to provide the proper clearance at full bump. If the current suspension setup on the JK being upgraded does not have 3” extensions, the new JKS1130 can be purchased separately to ensure proper clearance at full bump.
