Lopolight Port SideLight - Vertical Mount - Aluminum Housing - 1nm/. [101-002]

• Lopolight Port SideLight - Vertical Mount - Aluminum Housing - 1nm/... [101-002]

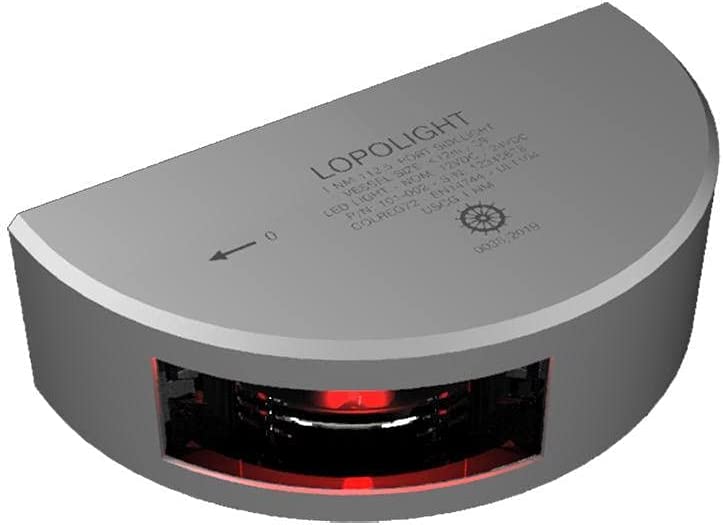

Port SideLight - Vertical Mount - Aluminum Housing - 1nm/112.5° Red with 2.5m Cable This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.The interior is completely filled with a special potting resin making it water- and vibration proof.Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:COLREG72EN14744IEC 60945USCG (UL1104)Specifications:Materials: Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane. Supply Voltage: 10.0 – 32.0 VDCPower Consumption: 1,0 WattCurrent @ 12 VDC: 0,08 A: Current @ 24 VDC: 0,04 A Light Colors: RedIntensity: >1.2 CDVisibility (@K=0.8): 1 nmNumber of LED's: 1Vessel Size: 12 meter (39.4 feet)Mounting: Vertical
