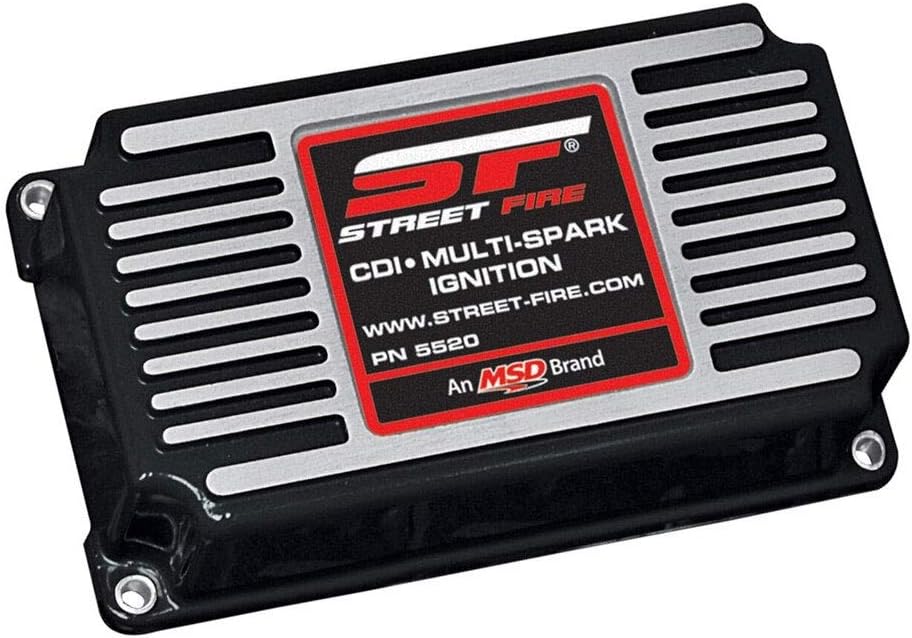

MSD 5520 Street Fire Ignition with Rev Control

• This ignition uses capacitive discharge technology
• Multiple sparks improve starting and idle
• Full power output at high RPM
• This unit connects to points, amplifiers and magnetic pickup distributors

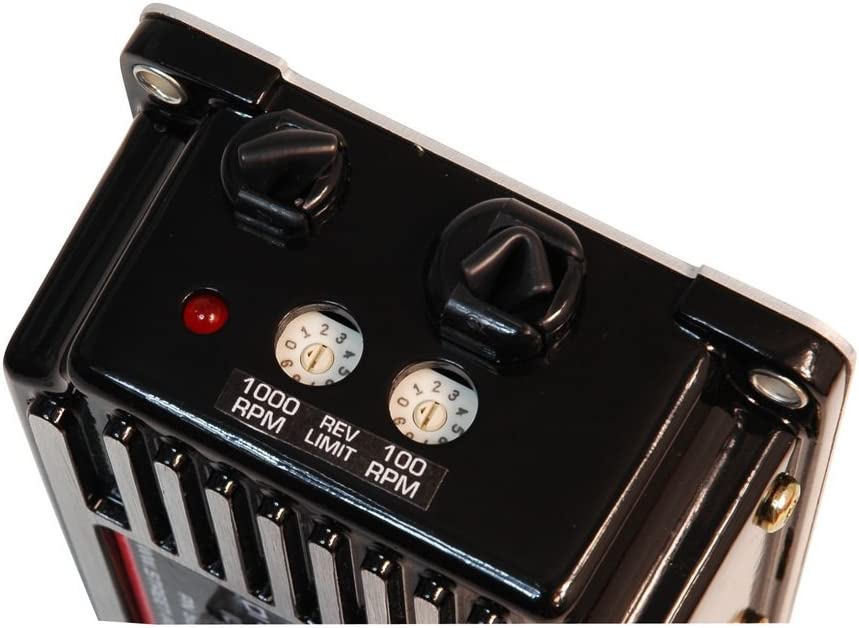

• Adjustable rev limiter for overrev protection
• Spark energy: 95 mJ Per Spark
• Primary voltage: 435 Volts / Secondary voltage: 45,000 Volts
• Spark series duration: 20° Crankshaft Rotation
• RPM range: 15,000 RPM with 14.4 Volts
• Voltage required: 10-18 Volts, Negative Ground / ltage required: 10-18 Volts, Negative Ground Current draw: .7 Amp per 1,000 RPM

This street fire cdi ignition is perfect for budget minded enthusiasts. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that lasts for 20 degree of crankshaft rotation when the engine is running under 3,000 rpm this ensures combustion and produces great throttle response and smooth idle. The cdi is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. There'S also an adjustable rev limiter. Protection.
