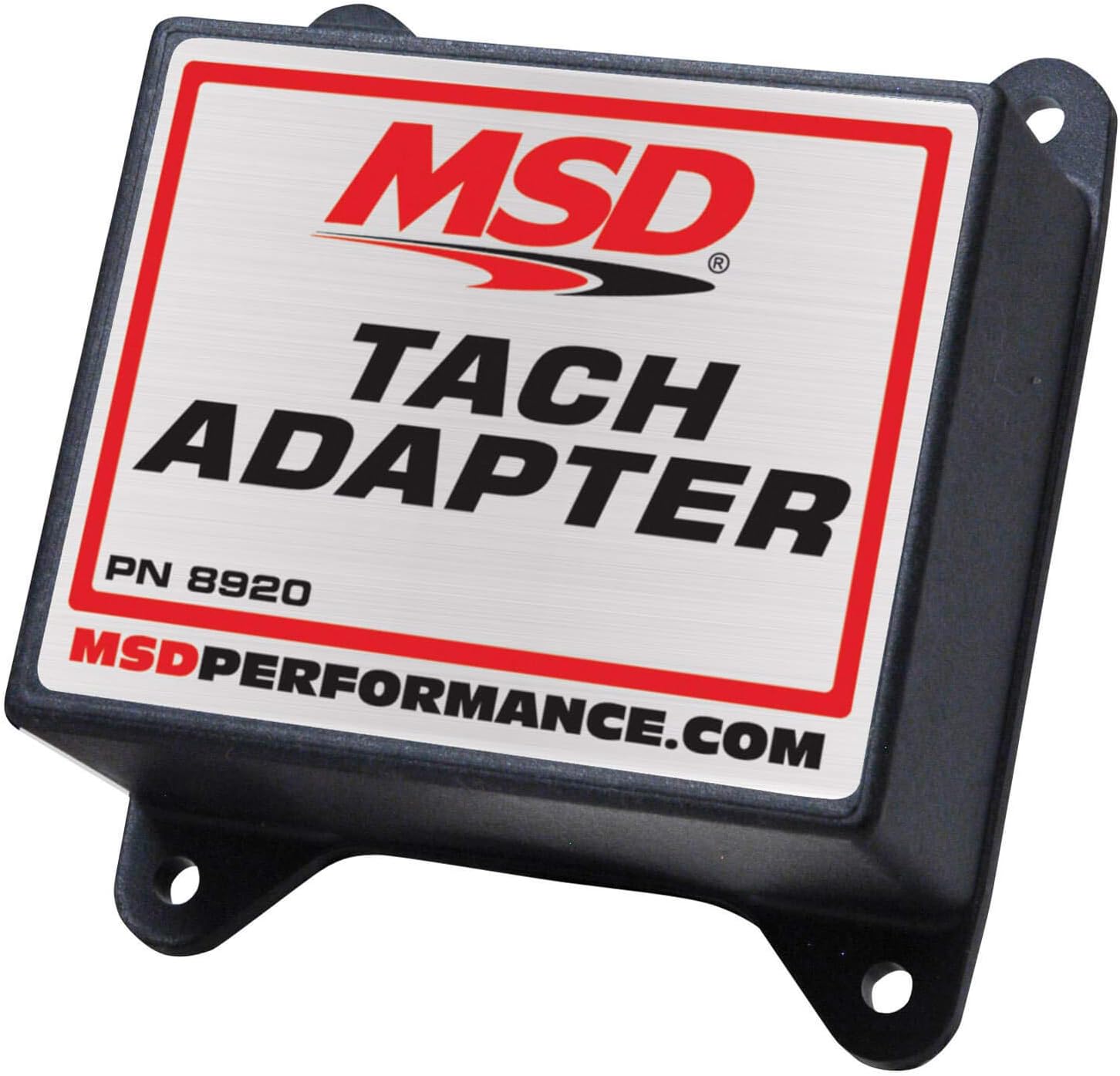

MSD Ignition 8920 Magnetic Pickup Tachometer Adapter

• Correct operation of voltage triggered tach
• Use current trigger tach in line with ignition switch
• Easy mounting and installation
• Great for a mag pickup used to trigger MSD Ignition
• Corrects most voltage-triggered tachometer
• Required with MSD ignition control
• Sold individually
• One Year Limited Warranty

If, after installing an MSD Ignition control, your tachometer, fuel pump relay or electronic fuel injection (in foreign vehicles) doesn't operate correctly, your application may require a tach adapter. This is due to the trigger signal not being strong enough to trigger both the MSD and the factory's components. Each adapter is simple to wire in and will have your MSD and vehicle firing away in no time. If you are using the magnetic pick-up input (green and violet wires) to trigger your MSD Ignition, you will need the PN 8920 tach adapter. The PN 8920 will correct the operation of most voltage-triggered tachometers that do not work directly off the tach output terminal of the MSD control. This adapter should also be used on current-triggered tach (hooked in series with the ignition switch).
