Pacer Red 12 AWG Primary Wire - 100'

• Length (Feet): 100'
• Upc: 840248202619
• Gauge: 12 AWG
• Color: Red

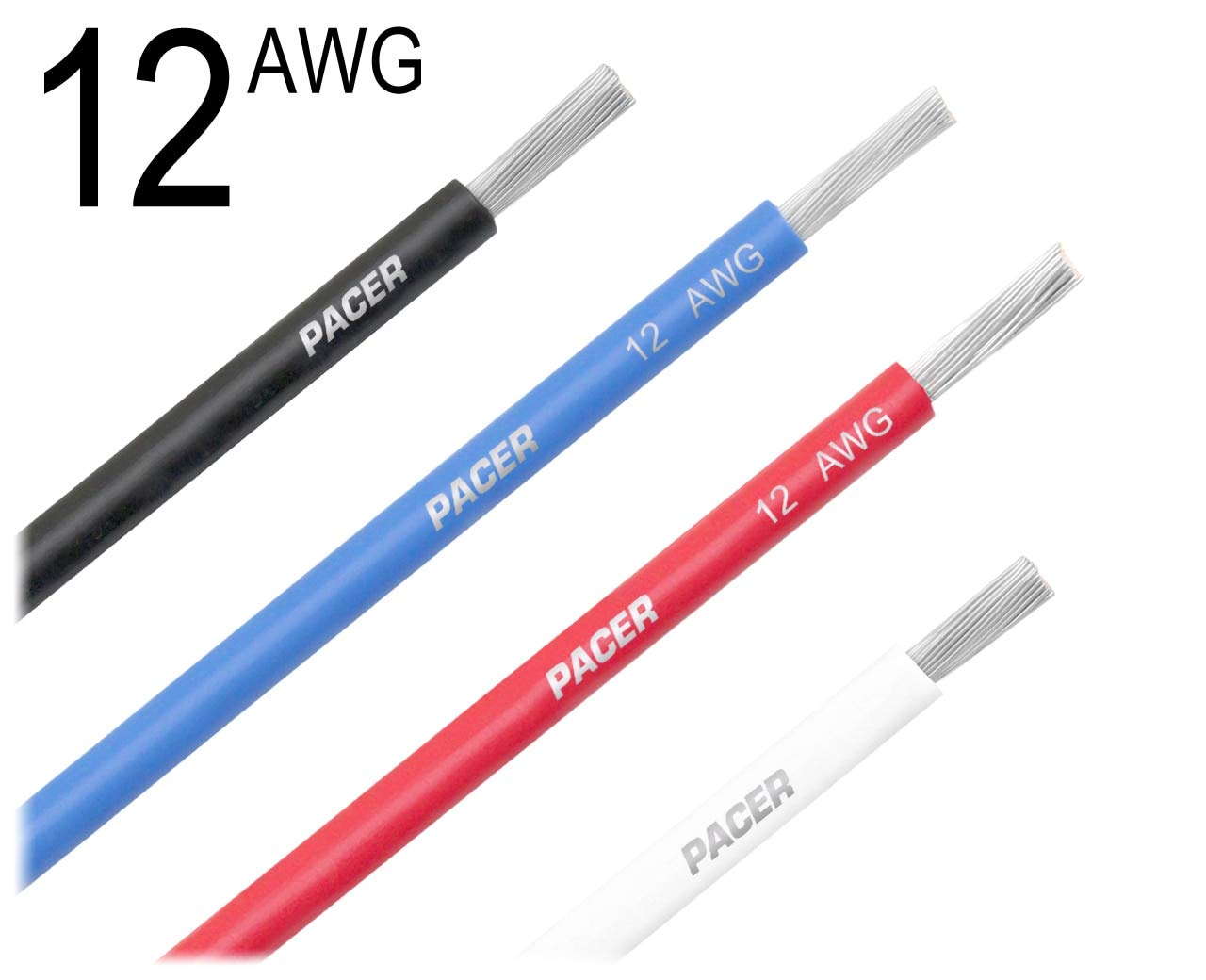

12 AWG UL Primary Wire Wire Specifications See Table AWG 12 Conductor Stranding 65/0.0100 Nom. Insulation 0.032 Nom. O.D. 0.160 Nom. Circular Mils 6500 Approx LB/M 32.0 Compliances: UL Standard 1426 BC-5W2 ABYC: E-11.14 UL: MTW Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems Temperature Rating: 105 Dry, 75 Wet Characteristics: Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation: -20 to 105 Flexible, Color Coded PVC Voltage Rating: 600-V Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture Pacer Group's UL approved marine wire is manufactured to withstand harsh marine environments. It is designed to meet and exceed extremely stringent specifications. This 12 AWG wire is built in house to ensure the absolute highest level of quality. This cable is constructed from Type III class K tinned copper. It offers superb durability and flexibility. The tinned copper conductors resist corrosion and add to the life of the wire. What type of insulation is used? Well, after the copper is tinned, the following step is to insulate it with a flexible PVC jacket. This insulation is designed to protect the wire and makes it resistant to a multitude of hazards. These hazards include; alkali, abrasion, acid, gas, oil, flame and moisture. What standards and compliances does Pacer Group's wire meet? This marine wire exceeds the standards and requirements of ABYC, NMMA and UL. Features: Stranded, tinned copper conductors Highly flexible color coded insulation Print: (For 18-8 AWG) PACER E157097 (UL)_AWG 600V BC-5W2 105 DRY, 75° WET OR MTW OR AWM 1015/1230 (1028/1231 -8AWG ONLY) VW-1 OIL RESISTANT I Applications: Point to point wiring Internal wiring of panels and motors
