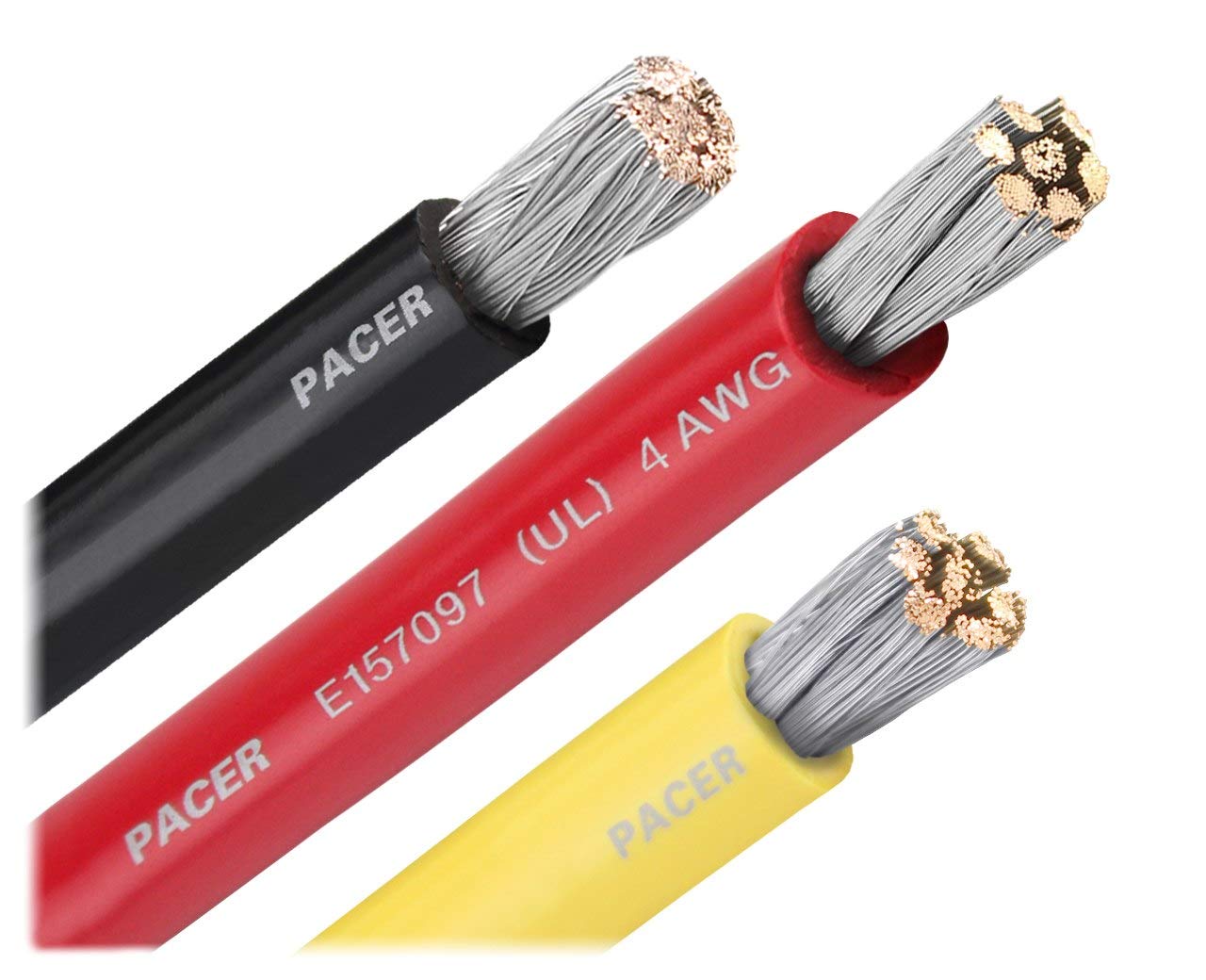

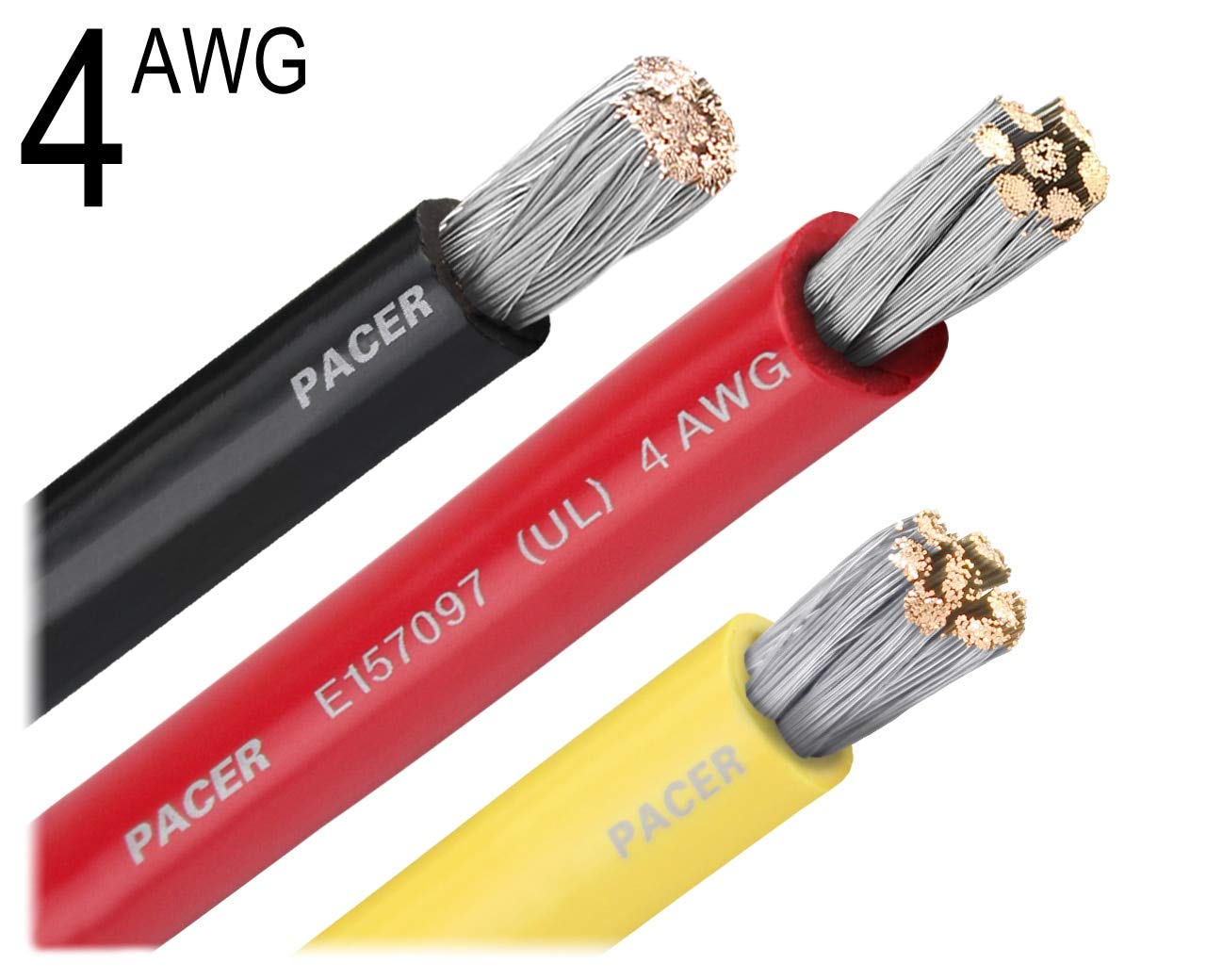

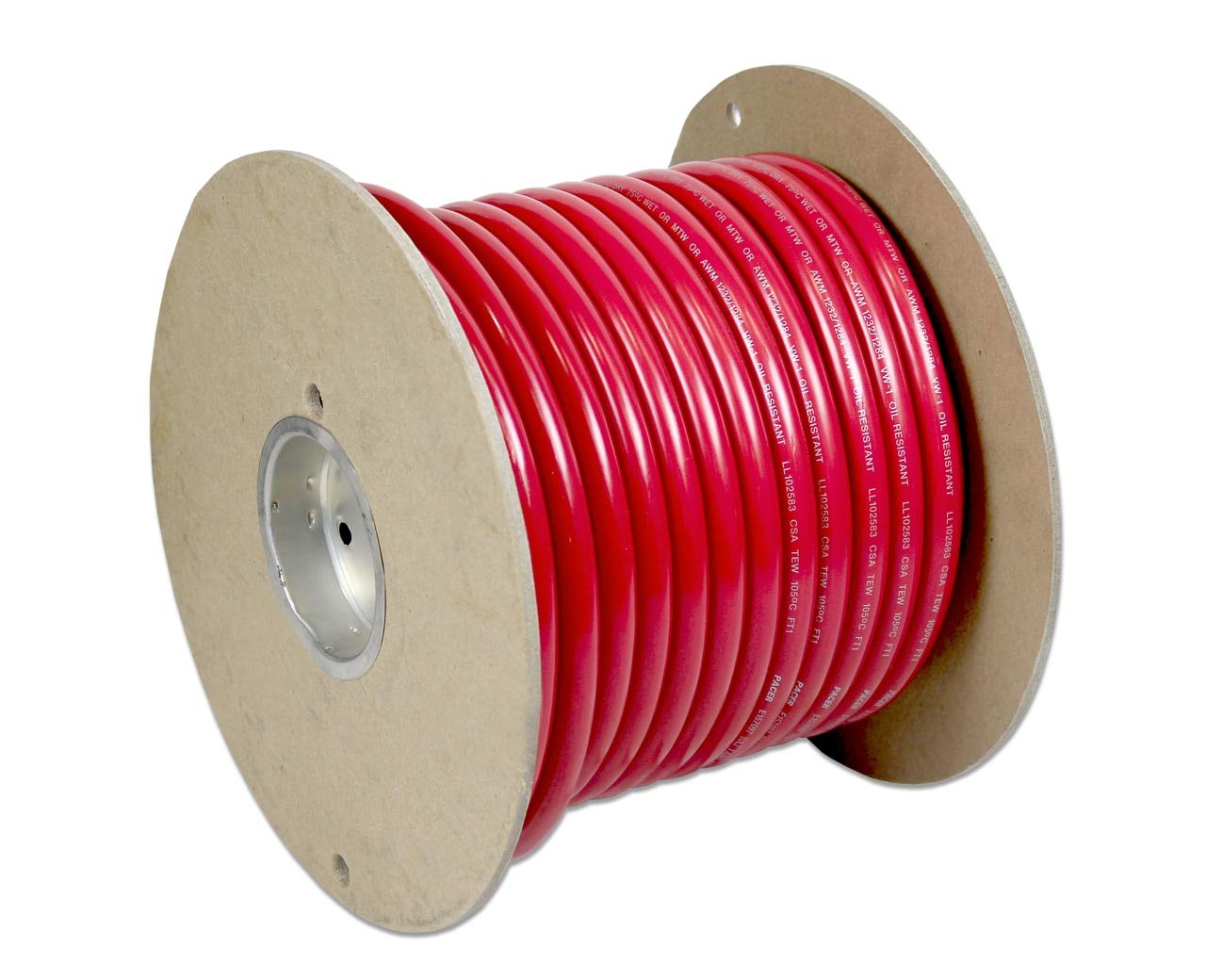

Pacer Red 4 AWG Battery Cable - 100'

Cable Specifications See Table AWG 4 Cond. Stranding 7x60/0.0100 Nom. Ins. Thickness 0.060 Nom. O.D. 0.400 Nom. Circular Mils 42000 Nom. MM2 21.3 Compliances: UL Standard 1426 BC-5W2 AWM 1232/1283 MTW CSA: TEW ABYC: E-11.16 Coast Guard: 33 CFR part 183 Subpart 1 Characteristics: Conductor: Annealed fine stranded tinned copper ASTM B172 Class K Insulation: -20 to 105 Flexible, Color Coded PVC Temperature Rating: 105 Dry, 75 Wet, 60 Oil Voltage Rating: 600-V Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture Pacer Group's Marine Battery Cable is designed to exceed the most stringent specifications. This UL approved marine cable is manufactured in house to guarantee high quality. Many times, marine applications are in tight, enclosed areas with sharp turns. Installation can become quite difficult. Pacer Group simplified the installation process by developing tough yet flexible marine cable. This marine cable is made from Type III tinned copper conductors. The copper resists corrosion and helps extend the life of the cable. The cable is then insulated with a durable and pliable PVC jacket. These things work together to make it the highest quality battery cable available. Features: Easy to strip, bend and route Excellent flexibility with the durable properties of PVC Print: PACER E157097 (UL) 4AWG 600V BC-5W2 105 DRY, 75° WET OR MTW OR AWM 1232/1283 VW-1 OIL RESISTANT I LL102583 CSA TEW105 FT1 Applications: Connecting battery or generator to a starter, ground, switch, windlass, inverter or other high amperage equipment
