Smittybilt X2O 17.5K GEN2 Wireless Winch 97517 17500 lb. Load Capacity

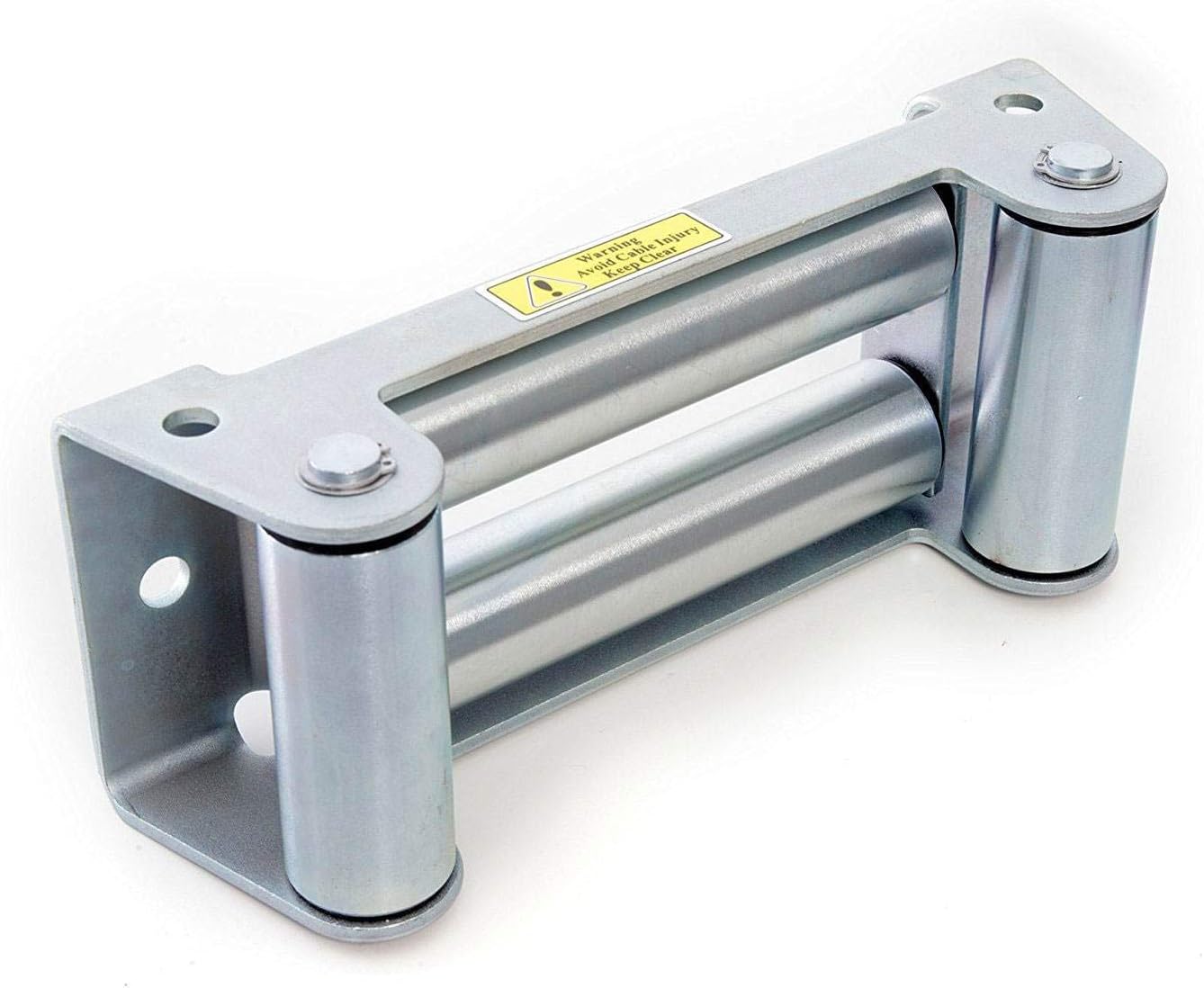

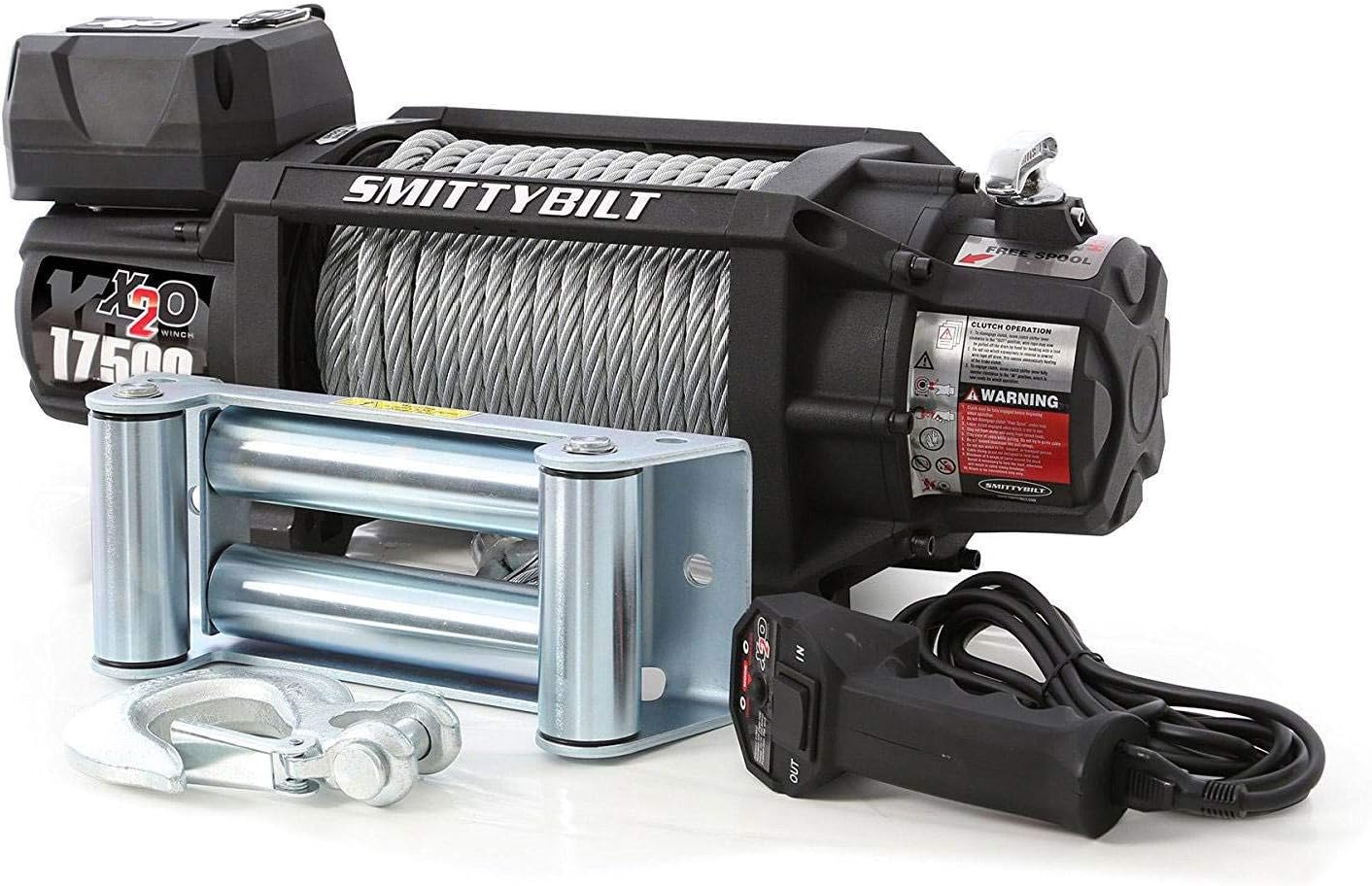

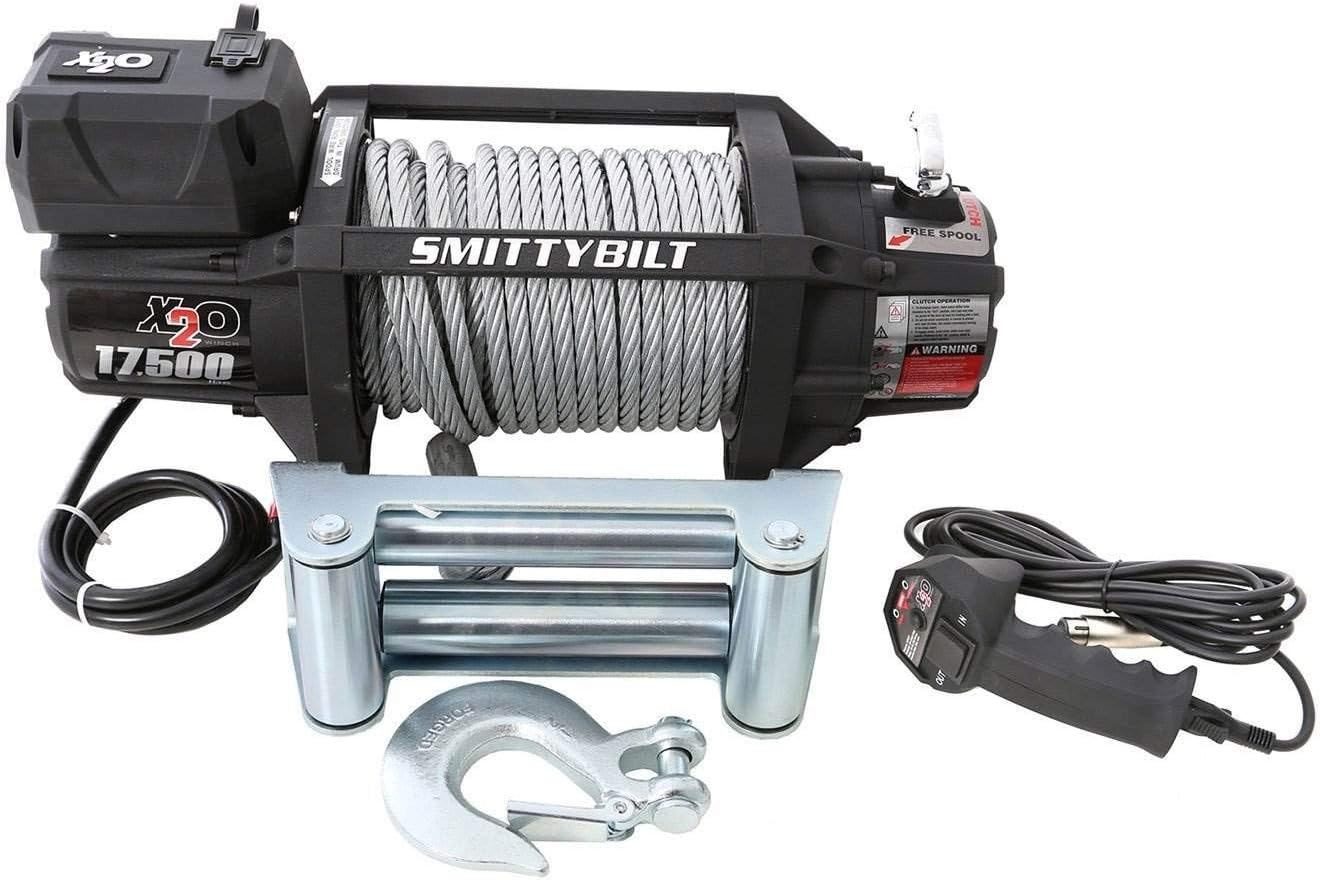

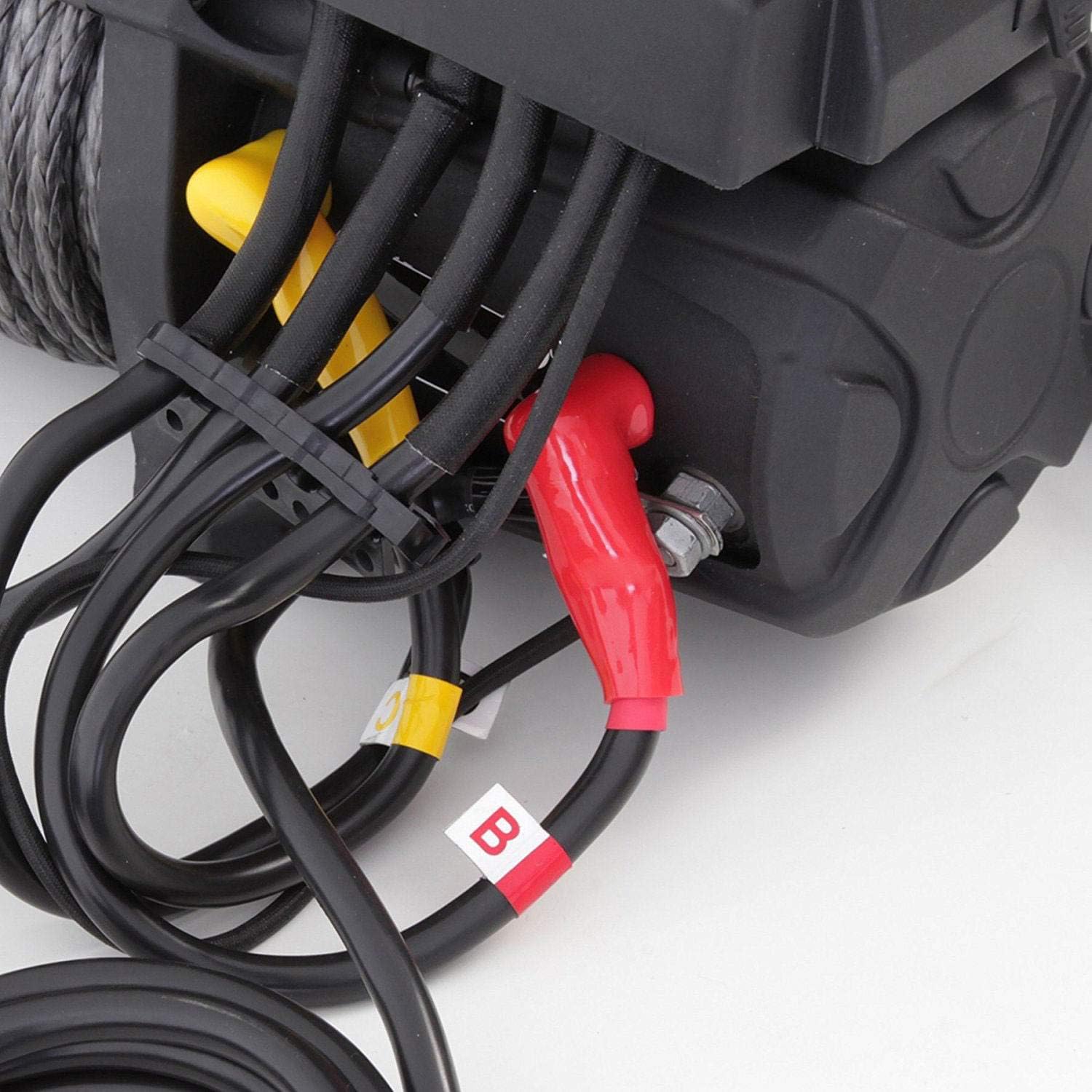

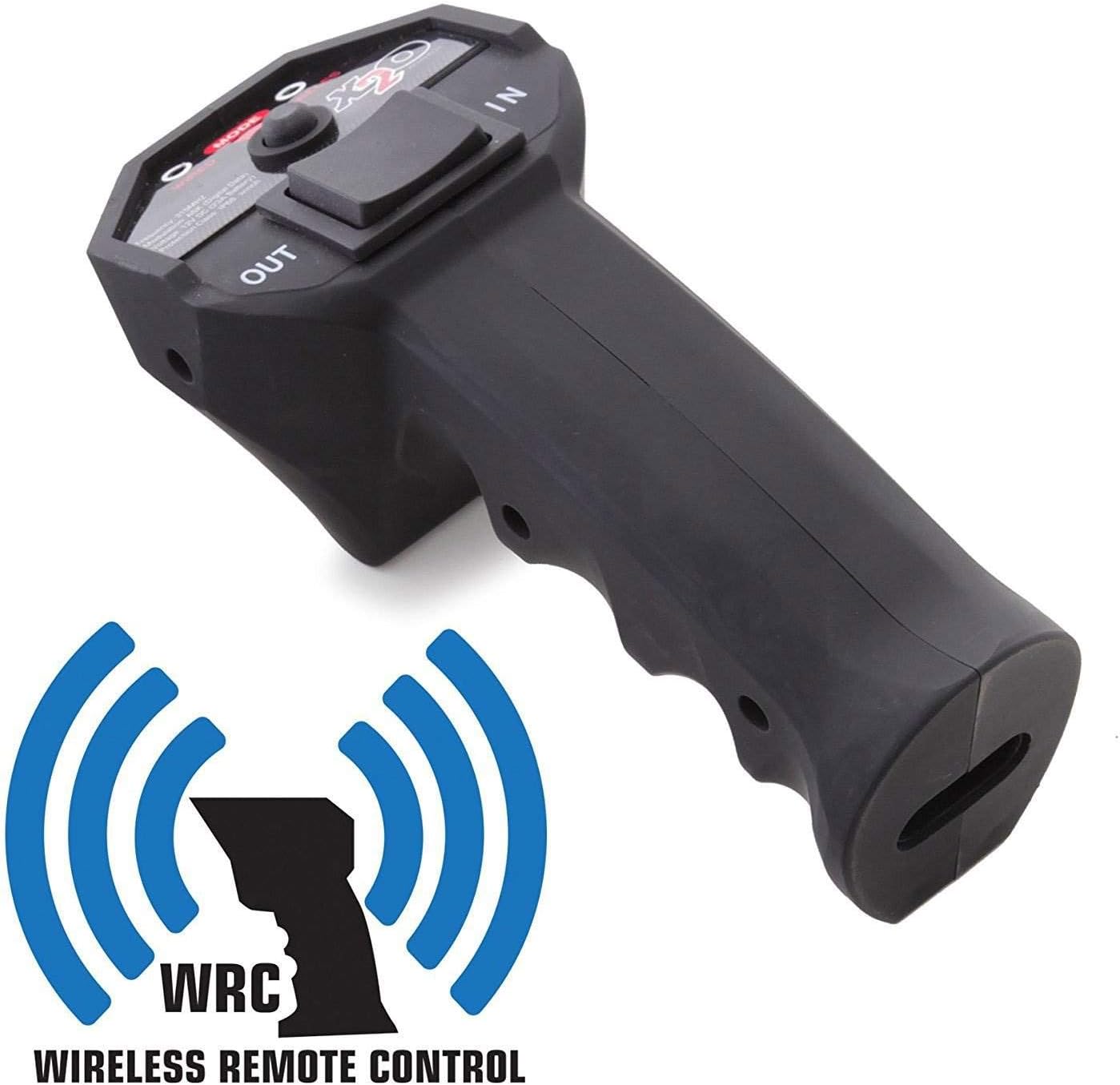

• Your purchase includes: Smittybilt X20 Steel Cable Winch, 4-way roller fairlead with forged hook, All required power cables to hook up to your vehicle, Rope Sleeve and Wireless Remote
• Winch can be operated with the remote or manually
• Technical Specification: 6.6 HP Amphibious motor, 3-Stage Planetary Gear System, Stainless Steel Hardware, Dynamic Braking System, 2 Solenoid Mounting Options
• Lifetime Mechanical Warranty, 5 Year Electrical Warranty
• Overall Dimensions: 22.3"L x 7.5" W x 10.7"H. Mounting Bolt Pattern: 10” x 4.5”. Net Weight: 132.2 pounds (59 kilograms)

Smittybilt 97517 winch has an IP68 waterproof rating, rated line pull of 17,500 pounds (7,954 kilograms) in a single line. Motor of 6.6hp series wound, the remote switch reaches 12 feet (3.7m) lead. The gear train is of revolutionary 3-stage planetary. Gear ratio is of 430:1, clutch: sliding ring gear, brake: automatic out-of-drum. Drum size: Diameter 3.45 inch, cable: 98.5 feet 3/8 inch diameter, cable type: braided steel wire rope, fairlead: 4-way roller. Recommended battery: 650CCA minimum for winching, battery leads: 25 square millimeter, 72 inch (1.83m). Finish: textured black. Weight: 132.2 pounds (59 kilograms); mounting bolt pattern: 10.0 inch x 4.50 inch, overall dimensions: 22.3"L x 7.5" W x 10.7"H.
