Viair 27520 Compressor Kit

• 152psi Permanent Magnetic Motor
• Duty Cycle: 25% @ 100 PSI
• Stainless Components - Weather Proof
• Remote Air Filter and Stainless Braided Leader Hose Included
• Includes ALL Mounting Hardware

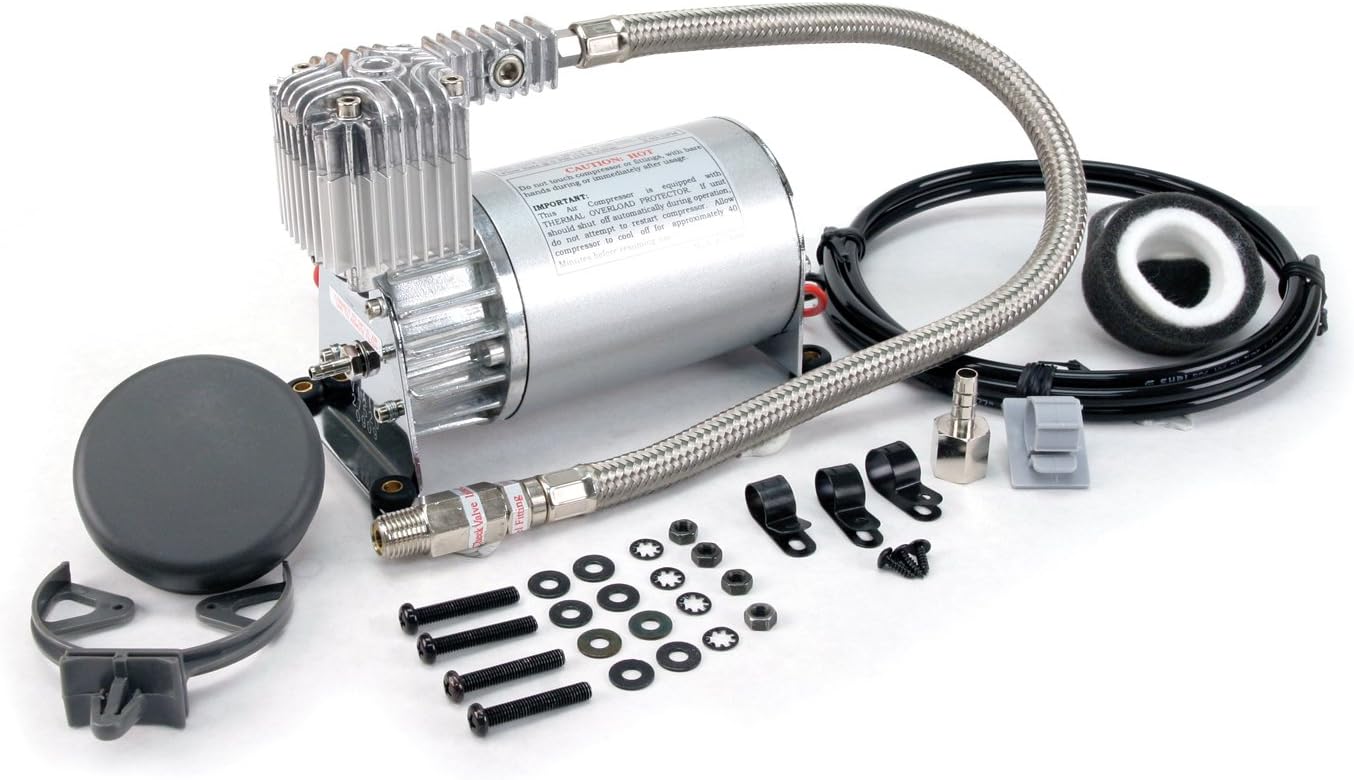

VIAIR's 275C compressor features a stainless steel braided leader hose, a 1/4” Male NPT connection with a swivel fitting hose end, a remote air filter, rubber isolated mounting feet as well as insulated electric terminals. This oil-less compressor is rated at 13.8 volt to a charging car battery. It is commonly used with air horns and can be paired with a 2.5 gallon air tanks or less. FEATURES – Check Valve – Vibration Isolators – Mounting Hardware – Stainless Steel Braided Leader Hose – Air Line for Remote Mount Air Filter – Remote Mount Air Filter Assembly – (2) Replacement Air Filter Elements – Installation Instructions – SPECIFICATIONS – 12-Volt – Permanent Magnetic Motor – Duty Cycle: 25% @ 100 PSI – Max. Working Pressure: 150 PSI – Max. Air Tank Size: 2.5 Gallon – Max. 12V Amp Draw: 18 Amps – Ingress Protection Rating: IP54 – Dimensions: 6.5″L x 3.5″W x 4.5″H – Net Weight: 5.20 lbs.   PERFORMANCE DATA PSI CFM A BAR LPM A 0 2.03 10 0 57.5 10 10 1.17 12 1.0 32.0 13 20 1.11 13 2.0 30.0 14 30 1.04 15 3.0 28.5 16 40 1.01 15 4.0 26.5 16 50 0.97 16 5.0 24.5 17 60 0.92 16 6.0 22.5 17 70 0.88 17 7.0 21.5 18 80 0.83 17 8.0 20.0 18 90 0.79 17 9.0 18.5 18 100 0.76 18 10.0 17.0 17 110 0.72 18 120 0.69 18 130 0.65 18 140 0.62 17 150 0.57 17  FILL RATES 1.0 GALLON TANK FILL RATE 0 to 105 PSI 1 min. 05 sec. (± 05 sec.) 85 to 105 PSI 14 sec. (± 03 sec.) 0 to 145 PSI 1 min. 45 sec. (± 05 sec.) 110 to 145 PSI 30 sec. (± 03 sec.) 2.5 GALLON TANK FILL RATE 0 to 105 PSI 2 min. 45 sec. (± 10 sec.) 85 to 105 PSI 40 sec. (± 05 sec.) 0 to 145 PSI 4 min. 30 sec. (± 10 sec.) 110 to 145 PSI 1 min. 35 sec. (± 05 sec.)
