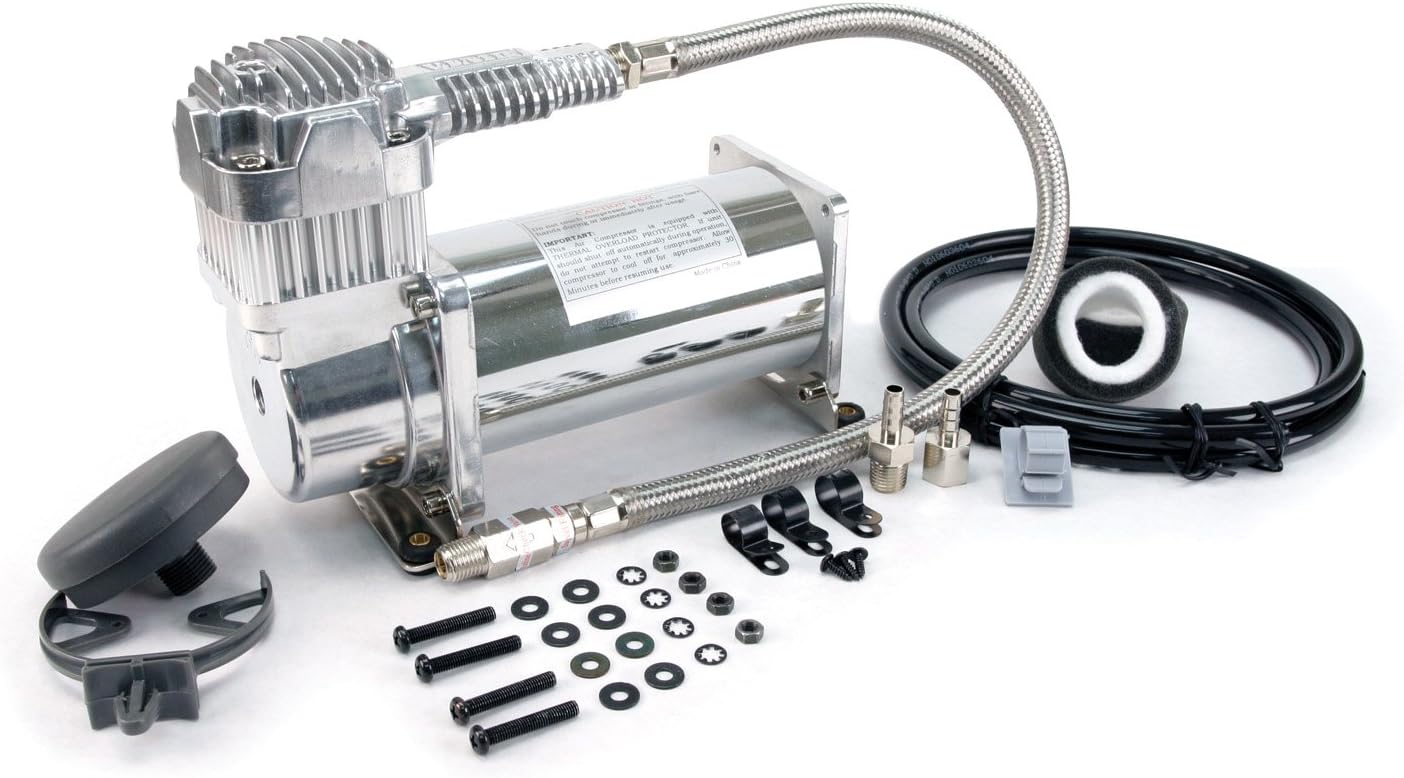

Viair 38033 Compressor Kit

• 12V ,Permanent Magnetic Motor
• Stainless Steel Braided Leader Hose included
• Package Weight: 9.744 pounds
• Package Dimensions: 29.8 L x 23.0 H x 17.4 W (centimeters)

380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes, with a 23 max amp draw at 13.8 volts. Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring. FEATURES – Check Valve – Vibration Isolators – Mounting Hardware – Stainless Steel Braided Leader Hose – Air Line for Remote Mount Air Filter – Remote Mount Air Filter Assembly – (2) Replacement Air Filter Elements – Installation Instructions SPECIFICATIONS – 12-Volt – Permanent Magnetic Motor – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) – Max. Working Pressure: 200 PSI – Max. Air Tank Size: 5.0 Gallon – Max. 12V Amp Draw: 23 Amps – Ingress Protection Rating: IP67 – Dimensions: 9″L x 4″W x 6.75″H – Net Weight: 8.75 lbs. PERFORMANCE DATA PSI CFM A BAR LPM A 0 1.58 12 0 44.7 12 10 1.45 13 1.0 38.1 13 20 1.22 14 2.0 33.3 15 30 1.17 15 3.0 30.6 16 40 1.09 16 4.0 29.1 17 50 1.06 17 5.0 27.1 18 60 1.02 17 6.0 25.3 19 70 0.97 18 7.0 24.0 20 80 0.92 18 8.0 22.4 21 90 0.88 19 9.0 21.0 23 100 0.85 20 10.0 19.5 21 110 0.81 21 11.0 18.2 20 120 0.78 22 12.0 16.7 19 130 0.74 23 13.0 15.2 19 140 0.71 21 14.0 13.5 18 150 0.67 20 160 0.64 20 170 0.60 19 180 0.57 19 190 0.53 19 200 0.49 18 * Supply Voltage: 13.8 Volts FILL RATES 2.5 Gallon Tank Fill Rate 0 to 145 PSI 3 min. 30 sec. (± 10 sec.) 110 to 145 PSI 1 min. 10 sec. (± 05 sec.) 0 to 200 PSI 6 min. 05 sec. (± 10 sec.) 165 to 200 PSI 1 min. 40 sec. (± 05 sec.) 5.0 Gallon Tank Fill Rate 0 to 145 PSI 7 min. 20 sec. (± 10 sec.) 110 to 145 PSI 2 min. 25 sec. (± 05 sec.) 0 to 200 PSI 13 min. 25 sec. (± 15 sec.) 165 to 200 PSI 3 min. 39 sec. (± 10 sec.)
