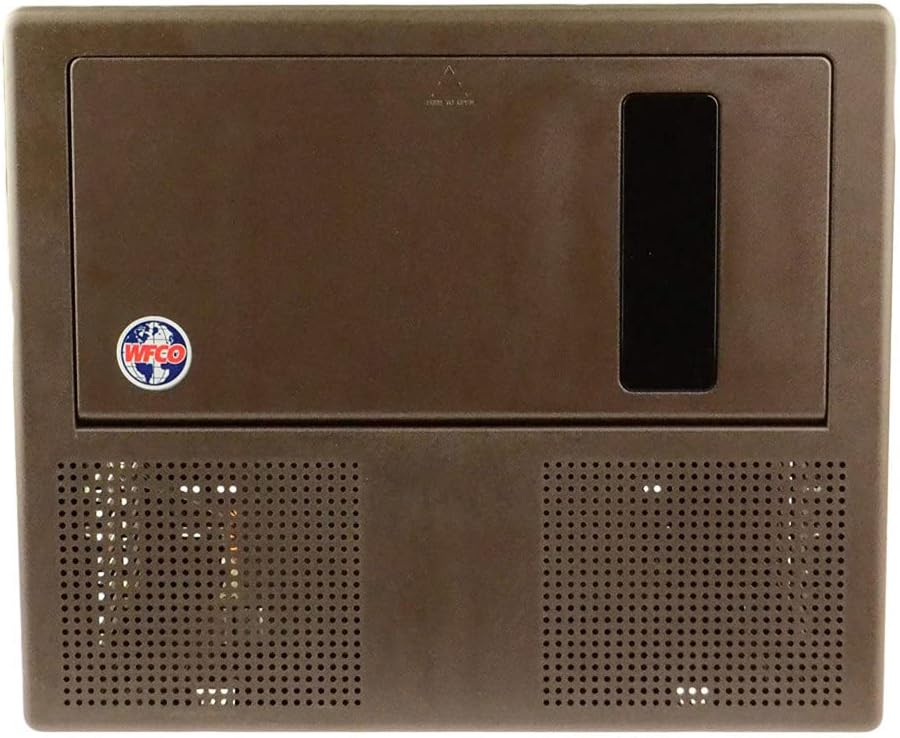

WFCO WF8945PEC WF-8900 Series Power Center - 45 Amp, Brown

• Designed not to cause interference with televisions, radios, or other signals
• Automatic 3-stage charger
• Provides 45 Amps and a clean, constant 13.6 VDC nominal output, for reliable operation of electronics and appliances
• Can accommodate a 30 Amp main AC circuit breaker and up to five branch circuits
• Standard Safety Features: Over Current, Over Temperature, Over Voltage, Reverse Polarity

The WF-8900 Series has revolutionized RV power centers with its lighter weight, decorative doors, and superior features. The WF-8945 model provides 45 Amps and a clean, constant 13.6 VDC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2 VDC range “float” mode, 13.6 VDC range “absorption” mode, and a 14.4 VDC range “bulk” charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed. FCC Class B compliance for every power center model means that the units are designed not to cause interference with televisions, radios, or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system. 8900 Series models provide AC and DC distribution with innovative features. They can accommodate a 30 Amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED bulbs for each DC circuit to illuminate and identify open circuits. Model: WF8945PEC (Brown). Output: 45 Amps DC. Input: 105-130 VAC, 60 Hz, 770W.
