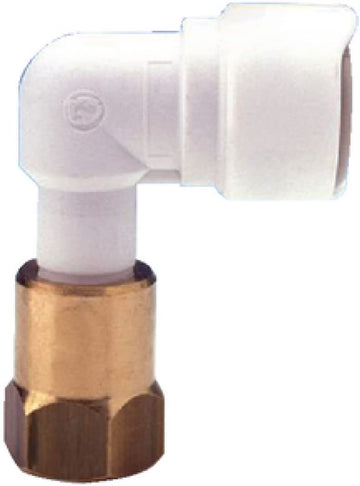

Whale Water Systems Swivel 90 Degree Elbow WX1531B

• WHALE PUMPS WX1531B, WHAWX1531B

The use of Whale Quick Connect fittings produces a high integrity, reliable plumbing system specifically designed for mobile applications. Fittings and tubing design ensures easy installation and re-usability of components. Easy to use; just cut tubing to length and insert into fitting to the second stop. Remove by pushing in on the collet and pulling the tubing out. Unique Double Gripper design provides secure lifelong tube retention even at excessive pressures Collet has internal support ring ensuring O-ring seal is held in position and does not distort or leak under pressure The innovative, tube supporting, cage collet design eliminates leaks where fittings are close to tight bends High integrity single piece molding improves the reliability and strength of fittings Outer sleeve incorporates collet cover, thus preventing accidental tube release No collet clips are necessary, thus the Whale system reduces costs and installation time Whales semi-rigid polyethylene tubing offers the integrity of metal tubing with the usability of plastic Minimum recommended tubing bend radius is 7; minimum bend is 5 times outside diameter of tubing (approx. 4 1/2 for 15mm tubing) System is rated at 180 PSI at 68F and 90 PSI at 150F
